FAN Failure Follow
Procedure:
Please boot up to the ACCTON-DIAG for troubleshooting.
1.1 Check the system LED light of the FAN.

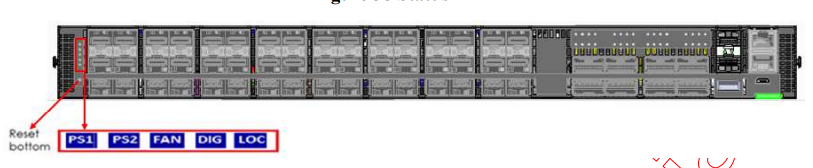

The following figure is the system LED light location for AS5916-54XL, AS5916-54XKS.

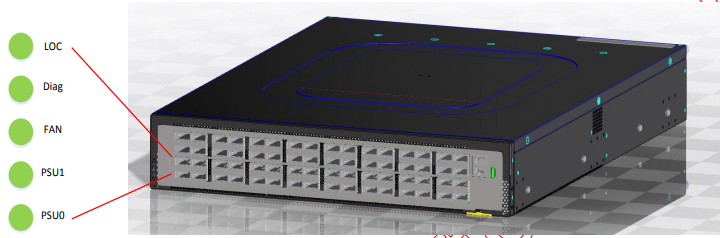

The following figure is the system LED light location for AS7816-64X.
The following figure is the LED light definition of the system FAN.
Caution: This is the LED light definition of ACCTON-DIAG.
The LED behavior may be different on other NOS.
Please consult the NOS vendor.
1.2 Check the LED status on the FAN module.
If the LED of the FAN module is green, it's no problem. (PASS)
If the LED of the FAN module is red or amber, it's the problem. (FAIL)
If your LED of the FAN is red or amber, you can send the unit back for RMA repair service directly.
1.3 Identify the FAN number.
Basically, the FAN number is marked on the chassis.
The following figure is an AS5916-54XL and AS5916-54XKS schematic diagram of FANs.

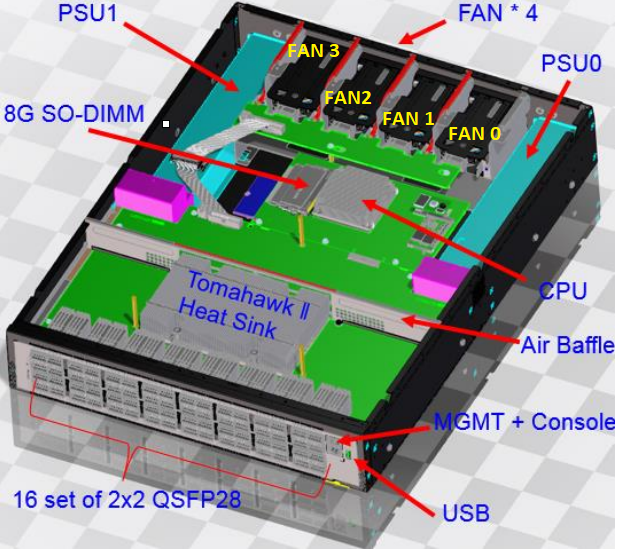

The following figure is an AS7816-64X schematic diagram of the fan.
1.4 Execute fanmod fan speed Test on ACCTON-DIAG
For AS5916-54XL and AS5916-54XKS.
The switch has two airflows, one is the front to back another one is back to front.
There are two ways to identify the airflows of the switch.
The first way is the check the model name.
Login to the ONIE then executes onie-syseeprom to check.
Use the following log to example and check the product name.
The product name is 5916-54XL-O-AC-F, -F is front to back.
In other words, if show the -B, it is back to front.
ONIE:/ # onie-syseeprom
TlvInfo Header:
Id String: TlvInfo
Version: 1
Total Length: 171
TLV Name Code Len Value
-------------------- ---- --- -----
Manufacture Date 0x25 19 01/29/2019 10:39:51
Label Revision 0x27 4 R01B
Platform Name 0x28 28 x86_64-accton_as5916_54xl-r0
Manufacturer 0x2B 6 Accton
Country Code 0x2C 2 TW
Base MAC Address 0x24 6 B8:6A:97:70:D4:F1
Serial Number 0x23 11 AAD1843AAAG
Part Number 0x22 13 FP1ZZ56540BGA
Product Name 0x21 16 5916-54XL-O-AC-F
MAC Addresses 0x2A 2 256
Vendor Name 0x2D 8 Edgecore
Diag Version 0x2E 11 01.03.00.12
ONIE Version 0x29 13 2019.11.00.01
CRC-32 0xFE 4 0xEE0769FD
Checksum is valid.

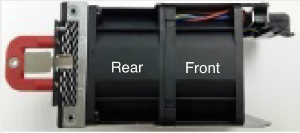

The second way is the check the fan module of the lever color.
The fan module of the red lever is front to back.
The fan module of the blue lever is back to front.
So please check the airflows first then can execute the correct command.
Example: PASS on AS5916-54XL and AS5916-54XKS.
root@(none):/# fanmod_AirFlow_Check_F2B
Fan Module Air Flow Check(front to back) ..............
Fan0 present: Yes
Fan0 air flow: front to back
Fan0 speed of front fan(RPM): 9600
Fan0 speed of rear fan(RPM): 8200
Fan1 present: Yes
Fan1 air flow: front to back
Fan1 speed of front fan(RPM): 10100
Fan1 speed of rear fan(RPM): 8500
Fan2 present: Yes
Fan2 air flow: front to back
Fan2 speed of front fan(RPM): 9900
Fan2 speed of rear fan(RPM): 8300
Fan3 present: Yes
Fan3 air flow: front to back
Fan3 speed of front fan(RPM): 9900
Fan3 speed of rear fan(RPM): 8400
Fan4 present: Yes
Fan4 air flow: front to back
Fan4 speed of front fan(RPM): 9800
Fan4 speed of rear fan(RPM): 8200
Fan5 present: Yes
Fan5 air flow: front to back
Fan5 speed of front fan(RPM): 9900
Fan5 speed of rear fan(RPM): 8500
Fan Module Air Flow Check(front to back): PASS
Example: FAIL on AS5916-54XL and AS5916-54XKS.
root@(none):/#fanmod_AirFlow_Check_F2B
Fan Module Air Flow Check(front to back) ..............
I2C device (0x66): failed to read!
Fan0 present: No
I2C device (0x66): failed to read!
Fan1 present: No
I2C device (0x66): failed to read!
Fan2 present: No
I2C device (0x66): failed to read!
Fan3 present: No
I2C device (0x66): failed to read!
Fan4 present: No
I2C device (0x66): failed to read!
Fan5 present: No
Fan Module Air Flow Check(front to back): FAIL
For AS7816-64X, ACCON Diag will detect the airflow automatically. So, not necessary to check the airflows before running the Diag.
Example: PASS on AS7816-64X.
This command on AS7816-64X will detect the airflow automatically.
root@(none):/# fanmod
Fan Module Test ..............
Fan1 present: Yes
Fan1 air flow: front to back
Fan1 speed of front fan(RPM): 21400
Fan1 speed of rear fan(RPM): 18000
Fan2 present: Yes
Fan2 air flow: front to back
Fan2 speed of front fan(RPM): 21300
Fan2 speed of rear fan(RPM): 17900
Fan3 present: Yes
Fan3 air flow: front to back
Fan3 speed of front fan(RPM): 21400
Fan3 speed of rear fan(RPM): 17900
Fan4 present: Yes
Fan4 air flow: front to back
Fan4 speed of front fan(RPM): 21300
Fan4 speed of rear fan(RPM): 18100
Fan5 present: Yes
Fan5 air flow: front to back
Fan5 speed of front fan(RPM): 21500
Fan5 speed of rear fan(RPM): 17700
Fan6 present: Yes
Fan6 air flow: front to back
Fan6 speed of front fan(RPM): 21200
Fan6 speed of rear fan(RPM): 17800
Fan Module Test: PASS
All the above, if the FAN test result is FAIL, please return the unit back for RMA repair service.
2.1 FAN noise due to high RPM.
- For AS7816-64X:
AS7816-64X does not support BMC module. Thus the FAN speed is controlled by NOS.

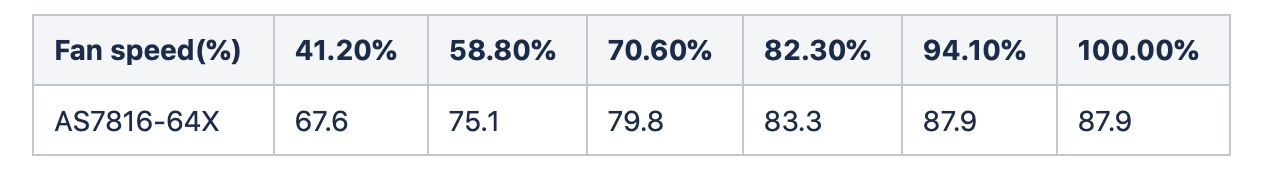

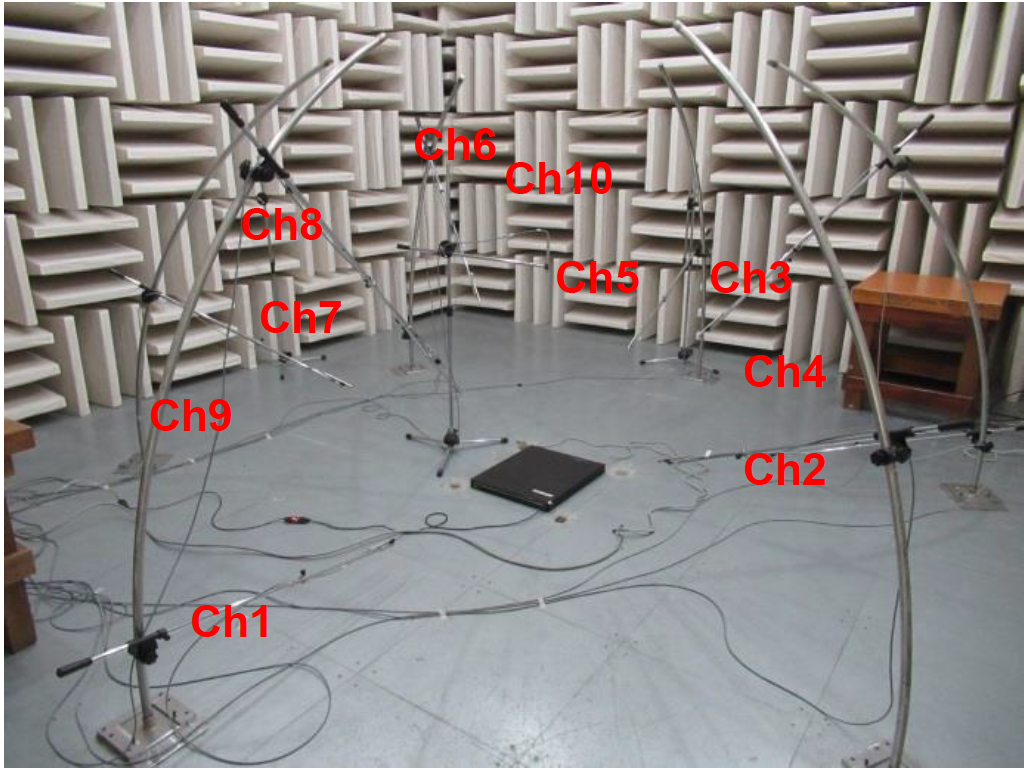

Fan sound pressure level(dBA) and test setup from environment test as below form.
Since the fan is controlled by NOS, you may execute the relative command about fan status from your NOS to check the current duty cycle.

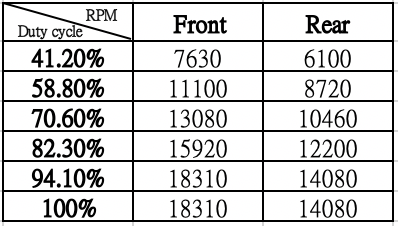

The following form is the correlation between speed and duty cycle, a fan tray contains two fan units, front and rear.
Note: Reasonable numbers within ± 10%
When you get the current fan duty cycle, you may refer to the sound pressure level and test with "decibel meter" to see if the noise is normal or not.
If you still have any concerns, boot into Accton_diag to check the fan function we mentioned above.
- For AS5916-54XL/XKS:
AS5916-54XKS and AS5916-54XL support BMC module. Thus, the FAN speed is controlled by BMC followed by temperature policy.

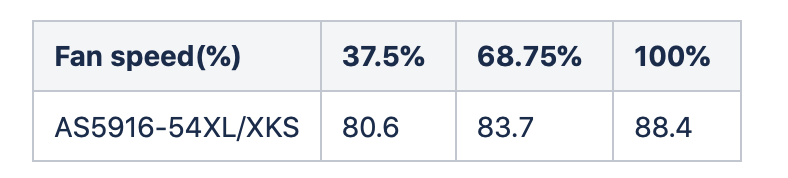

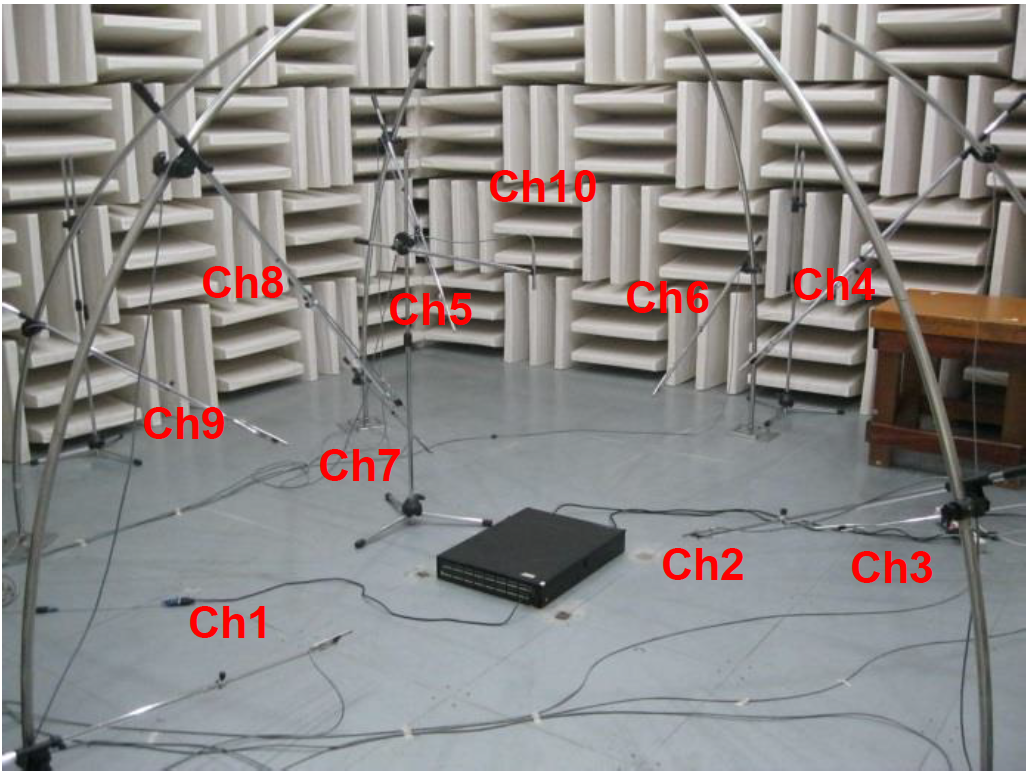

Fan sound pressure level(dBA) and test setup from environment test as below form.
For AS5916-54XKS and AS5916-54XL, if fan noise due to high RPM, please check the BMC version.
Thermal policy is supported in BMC version 0.4F and above, if your BMC version is lower than 0.4F, update the BMC first.
How to upgrade BMC version via web management?
How to check the current FAN speed? Execute the following command in ONIE.
#ipmitool raw 0x34 0x14 //check fan speed
00 05 64 00 00 05 64 00 00 05 64 00 00 05 64 00
00 05 64 00 00 05 64 00ff ff 64 00 ff ff 64 00ff ff 64 00 ff ff 64 00 ff ff 64 00 ff ff 64 003f
For exmaple,
00 05 64 00 = fan1, the second number is PWM value = 05, (PWM + 1) * 6.25% = currently fan duty cycle(37.5%).
00 05 64 00 = fan2, the second number is PWM value = 05, (PWM + 1) * 6.25% = currently fan duty cycle(37.5%).
....
00 05 64 00 = fan6, the second number is PWM value= 05, (PWM + 1) * 6.25% = currently fan duty cycle(37.5%).
When you get the current fan speed(%), you may refer to the sound pressure level and test with "decibel meter" to see if the noise is normal or not.
If you still have any concerns, boot into Accton_diag to check the fan function we mentioned above.
