[AS57/58/67/68 series] PSU failure Follow

Please boot the switch into Accton Diag. for further troubleshooting.

Step1. Check the PSU LED on the front panel (system LED).

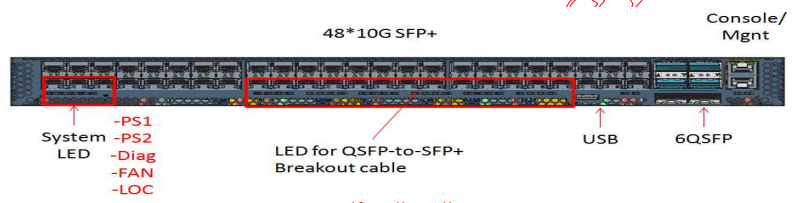

The following figure is the system LED light location for AS5712-32X, AS5812-54X, AS5812-54T.

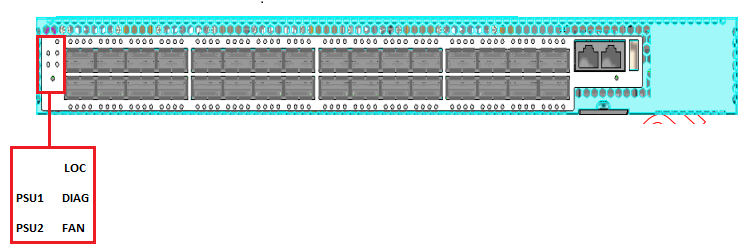

The following figure is the system LED light location for AS6712-32X, AS6812-32X.

The following figure is the definition of the system PSU LED.

If PSU LED is Amber/Orange, thus one or two PSU modules get a problem.

Step2. Check the LED status on the PSU module power injection.

If the LED of the PSU module is green, it's no problem (PASS).

If the LED of the PSU module is blinking or lighting or amber, it's the problem. (FAIL)

Step3. Identify the PSU number.

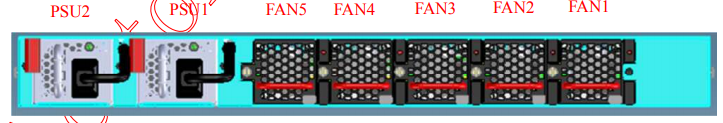

The following figure is an AS5712-54X and AS5812-54X, AS5812-54T schematic diagram of PSU1 and PSU2.

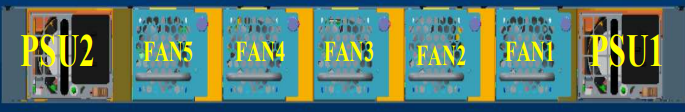

The following figure is an AS6712-32X and AS6812-32X schematic diagram of PSU1 and PSU2.

Step 4.  Execute (030) Detect PSU status on Accton Diag

Please connect power cords(power injection) to two PSU modules.  Otherwise, the test result is failed as

expected.

Example 1:

diag#diag_main
Diagnostics 1.0.0.8
**********************************************************************
(001) DDR free memory test version
…
(030) Detect PSU status
…
(040) Test MSATA
**********************************************************************
Please enter your choice(Enter 0 to quit):30
PSU status detect:
PSU1 power state   = power good
PSU2 power state   = power good
PSU1 present state = present
PSU2 present state = present
Item (30) test result : SUCCESS

Example 2: PSU 1 failure

diag#diag_main
Diagnostics 1.0.0.8
**********************************************************************
(001) DDR free memory test version
…
(030) Detect PSU status
…
(040) Test MSATA
***************************************
Please enter your choice(Enter 0 to quit): 030
PSU status detect:
PSU1 power state = power fail
PSU2 power state = power good
PSU1 present state = present
PSU2 present state = present
Item (30) test result : FAILURE

All above, indicate one or two PSU get problems, please return the unit back for RMA repair service.
