[ACCTON Diag.] How to install Accton-Diag on Edgecore x86 platform switch via ONIE? Follow

jeff_cheng 鄭皓文

August 23, 2024 11:08
Updated

Purpose:

This post shows the procedures to install Accton-Diag via ONIE on Edgecore switch.

Model:

AS5712-54X

AS5812-54X, AS5812-54T

AS5912-54X

AS5916-54XKS, AS5916-54XL

AS6712-32X

AS6812-32X

AS7726-32X

AS7326-56X

AS7712-32X

AS7816-64X

AS9716-32D

Method:

A. USB drive

B. Cable transfer

TFTP
FTP
HTTP
SCP

Preparation:

A. Personal computer

B. Onie-updater

Download the ONIE-updater image for your own device.
Reference: How to download the current firmware?

C. Serial Console cable:

A cable which attached in the original box.

D. Console terminal

Putty,Teraterm,SecureCRT,etc...

E. Empty USB drive or transport protocol tools

USB drive
TFTP server
FTP server
Http file server
OpenSSH

Procedure:

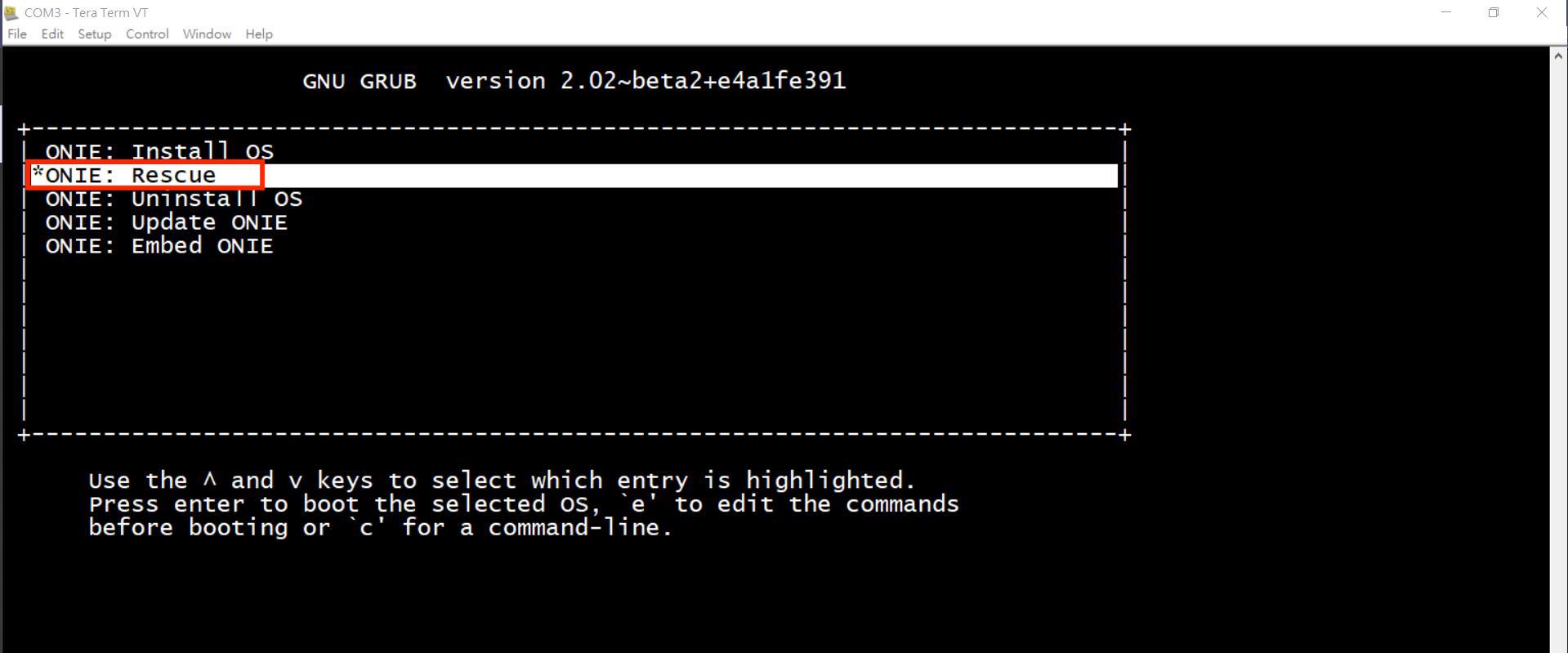

STEP1. Reboot the data center and enter the "ONIE: Rescue" mode.

STEP2. Start the upgrade process (5 examples)

USB drive

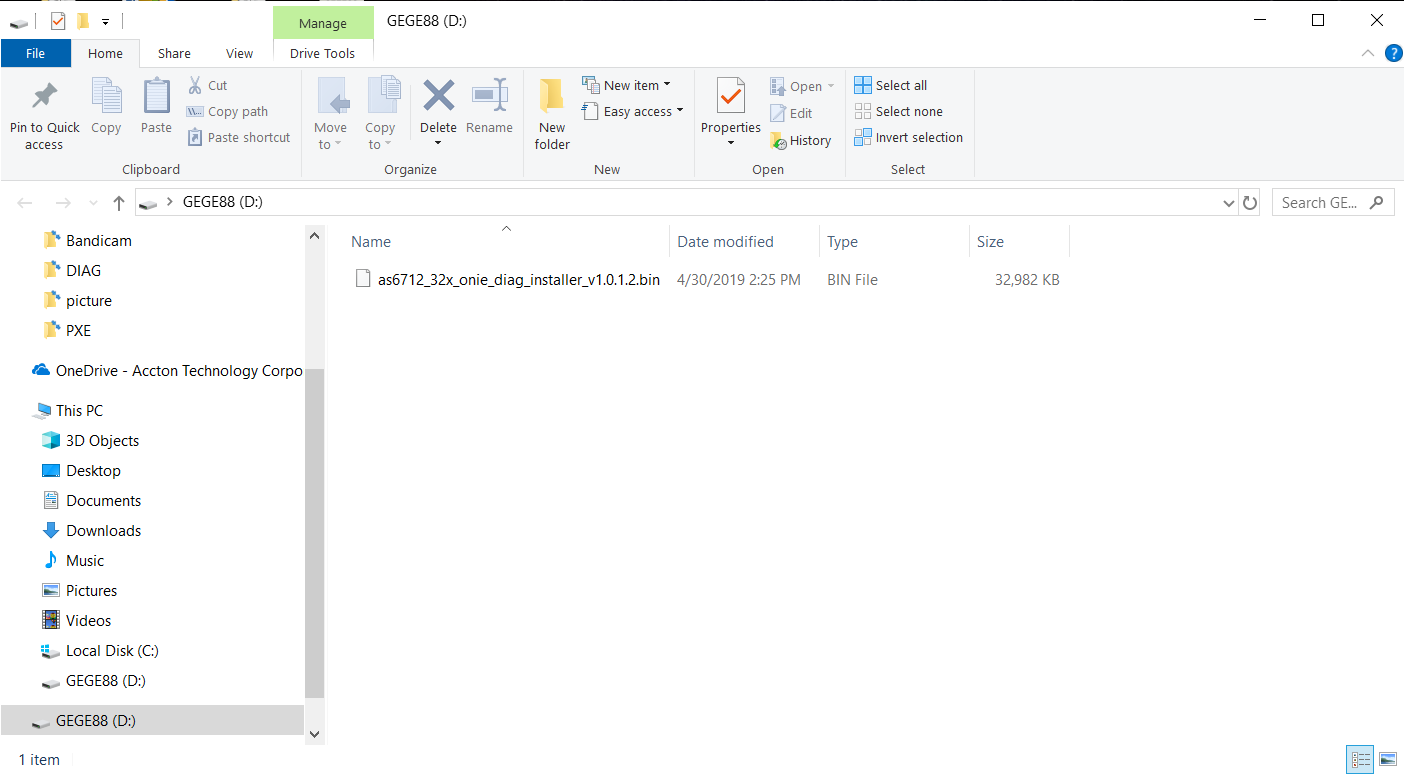

1. Put the onie_diag_installer to the USB drive. (e.g., as6712_32x_onie_diag_installer_v1.0.1.2.bin )

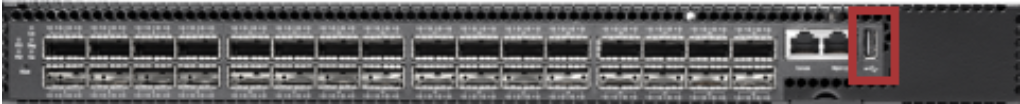

2. Insert the USB drive into the data center front panel.

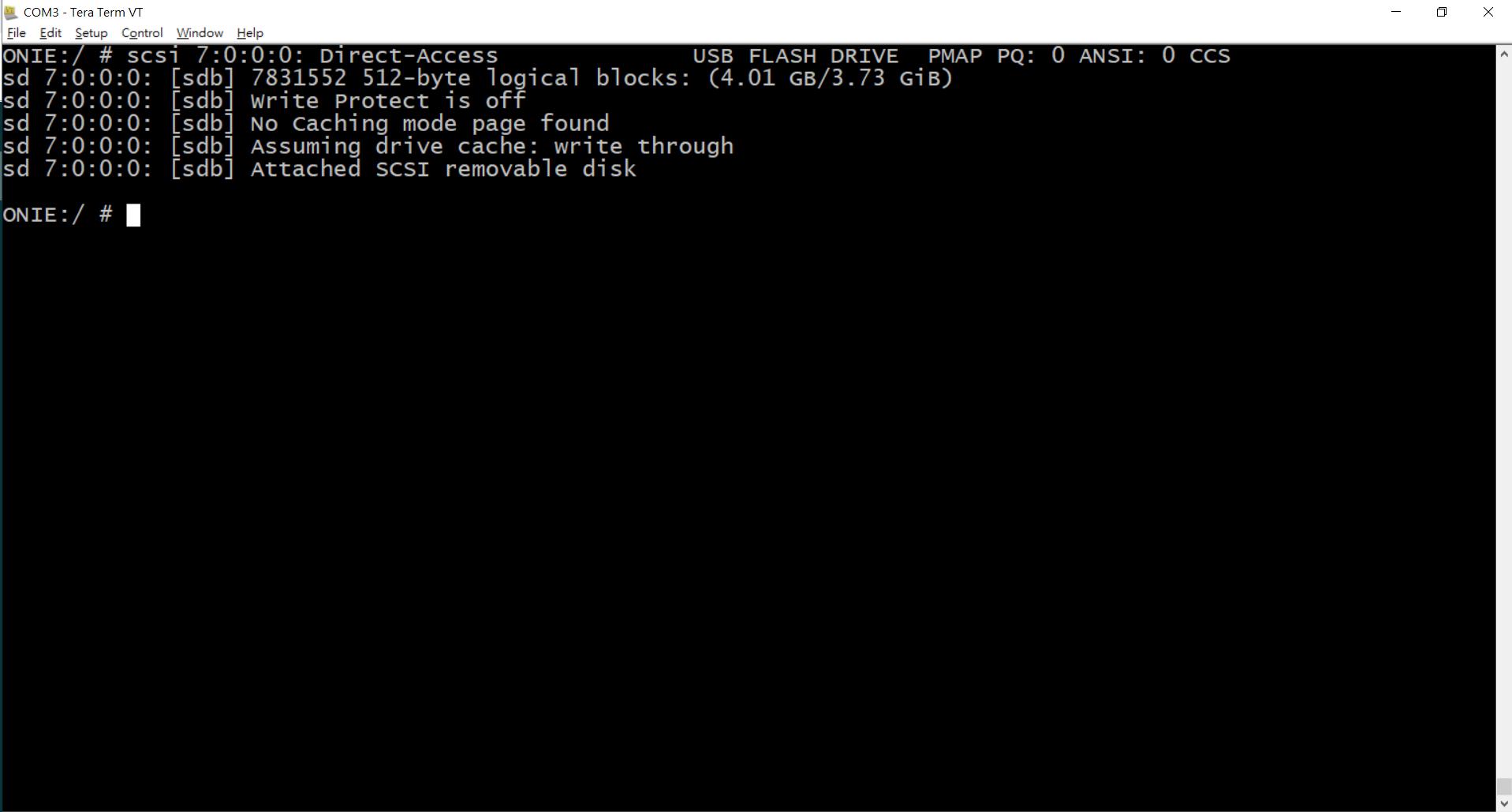

3. The terminal will show the following message.

4. Input "fdisk -l" command to show the storage status (e.g., /dev/sdb)

       ONIE:/ # fdisk -l

       Disk /dev/sda: 8048 MB, 8048869376 bytes
       255 heads, 63 sectors/track, 978 cylinders
       Units = cylinders of 16065 * 512 = 8225280 bytes

       Device Boot Start End Blocks Id System
       /dev/sda1 * 1 979 7860223+ ee EFI GPT
       Partition 1 has different physical/logical beginnings (non-Linux?):
       phys=(0, 0, 1) logical=(0, 0, 2)
       Partition 1 has different physical/logical endings:
       phys=(1023, 254, 63) logical=(978, 140, 58)

       Disk /dev/sdb: 4009 MB, 4009754624 bytes
       255 heads, 63 sectors/track, 487 cylinders
       Units = cylinders of 16065 * 512 = 8225280 bytes

       Device Boot Start End Blocks Id System
       /dev/sdb1 * 1 488 3911744 b Win95 FAT32
       Partition 1 has different physical/logical beginnings (non-Linux?):
       phys=(1023, 254, 63) logical=(0, 128, 1)
       Partition 1 has different physical/logical endings:
       phys=(1023, 254, 63) logical=(487, 125, 22)

Note: /dev/sda is original hard drive, eUSB, 8G

5. Mount the USB drive and check the mount status.

       ONIE:/mnt # mkdir /mnt/usb
       ONIE:/mnt # mount -v /dev/sdb1 /mnt/usb
       ONIE:/mnt # mount | grep sdb1
       /dev/sdb1 on /mnt/usb type vfat (rw,relatime,fmask=0022,dmask=0022,codepage=437,iocharset=iso8859-1,shortname=mixed,errors=remount-ro)

6. Copy the onie_diag_installer to local storage. (e.g., /tmp)

        ONIE:/mnt/usb # ls
        System Volume Information
        as6712_32x_onie_diag_installer_v1.0.1.2.bin
        ONIE:/mnt/usb # cp as6712_32x_onie_diag_installer_v1.0.1.2.bin /tmp

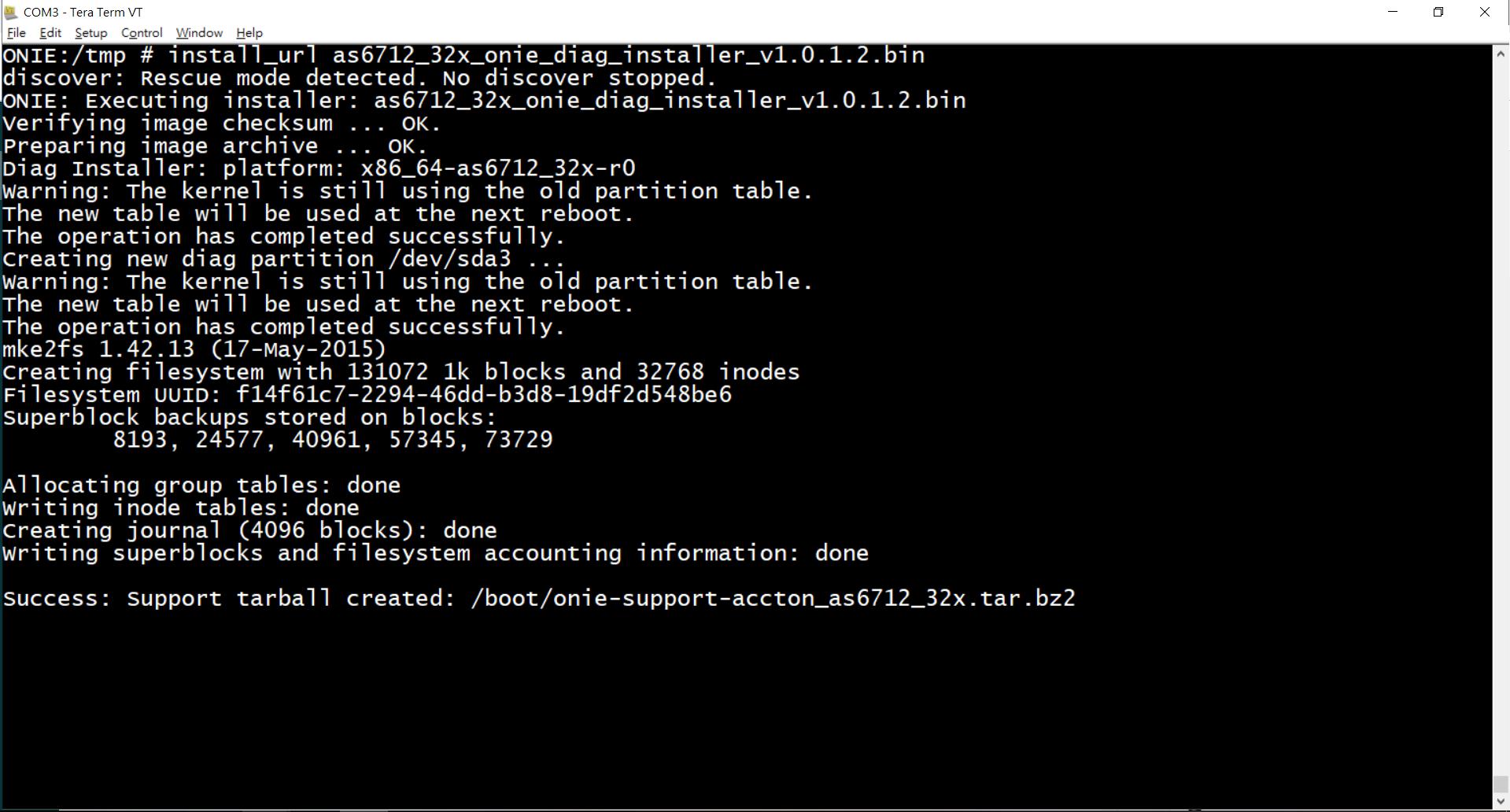

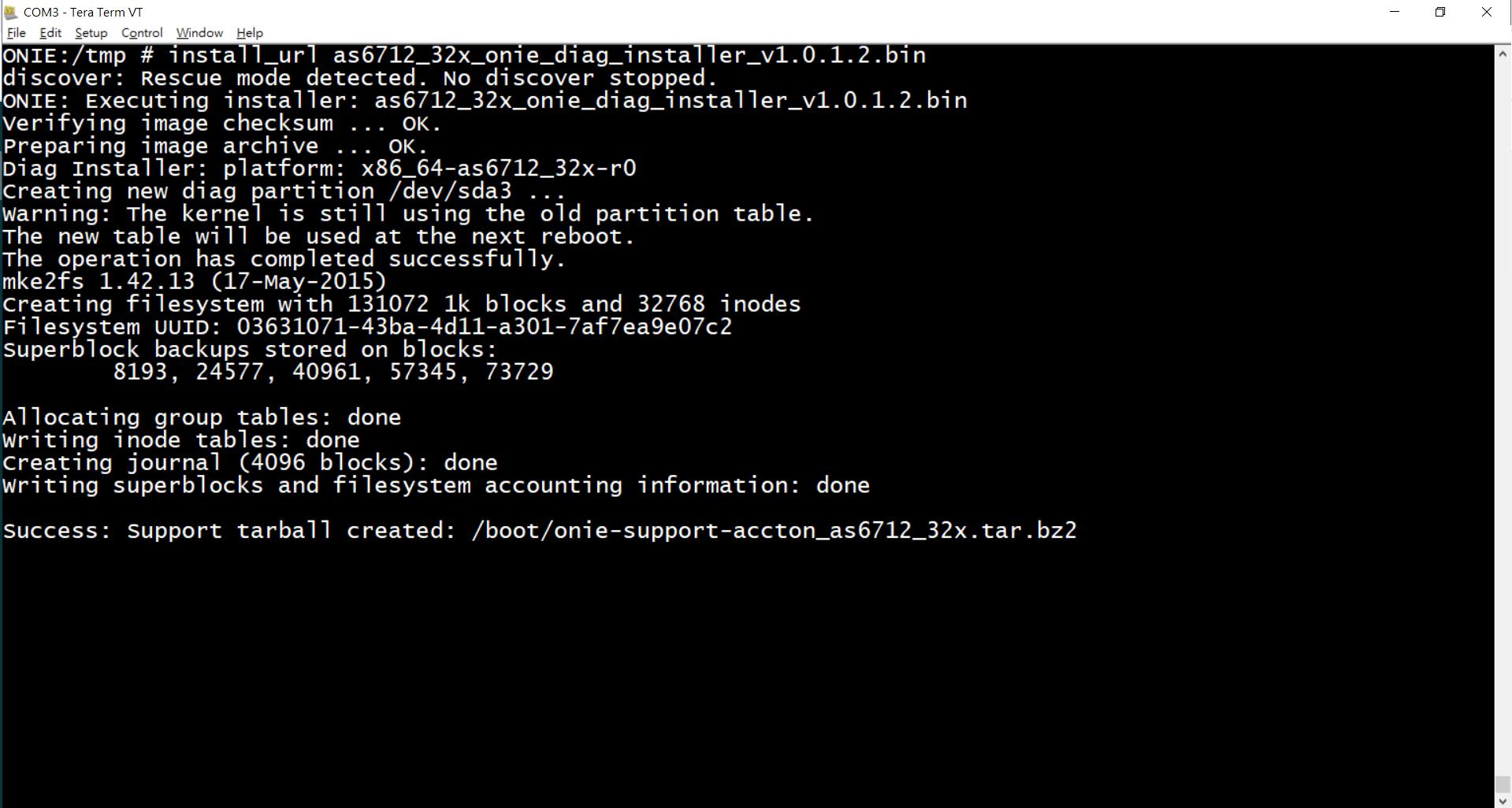

7. Install the Diag by "onie_nos_install" command.

       ONIE:/ # cd /tmp
       ONIE:/tmp # ls
       as6712_32x_onie_diag_installer_v1.0.1.2.bin
       ONIE:/tmp # onie-nos-install as6712_32x_onie_diag_installer_v1.0.1.2.bin

8. Diag will be installed immediately. After installing, the system will automatically reboot.

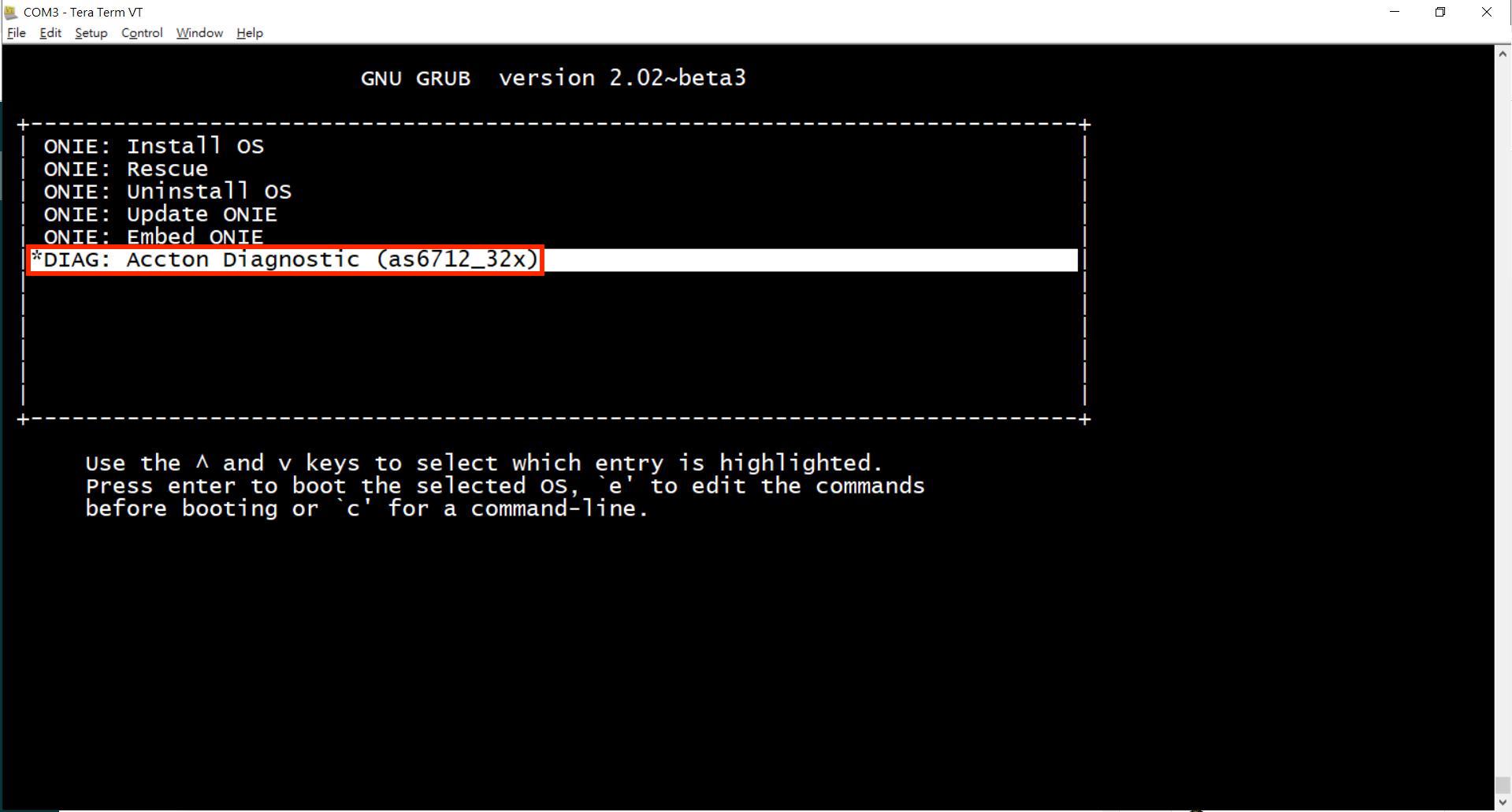

9. After rebooting, Accton diag can be selected.

TFTP

1. Please connect to the TFTP server with Mgmt port. (e.g., AS6712-32x)

Note: Please use 1G port.

2. Set the IP address in ONIE and try to ping the TFTP server. (Server IP: 192.168.0.200)

       ONIE:/ # ifconfig eth0 192.168.0.1 netmask 255.255.255.0

       ONIE:/ # ifconfig
       eth0 Link encap:Ethernet HWaddr CC:37:AB:C4:B1:0C
       inet addr:192.168.0.1 Bcast:192.168.0.255 Mask:255.255.255.0
       inet6 addr: fe80::ce37:abff:fec4:b10c/64 Scope:Link
       UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
       RX packets:77 errors:0 dropped:0 overruns:0 frame:0
       TX packets:31 errors:0 dropped:0 overruns:0 carrier:0
       collisions:0 txqueuelen:1000
       RX bytes:7619 (7.4 KiB) TX bytes:7134 (6.9 KiB)
       Memory:dff00000-dff1ffff

       ONIE:/ # ping 192.168.0.200
       PING 192.168.0.200 (192.168.0.200): 56 data bytes
       64 bytes from 192.168.0.200: seq=0 ttl=128 time=9.675 ms
       64 bytes from 192.168.0.200: seq=1 ttl=128 time=0.517 ms
       ^C
       --- 192.168.0.200 ping statistics ---
       2 packets transmitted, 2 packets received, 0% packet loss
       round-trip min/avg/max = 0.517/5.096/9.675 ms

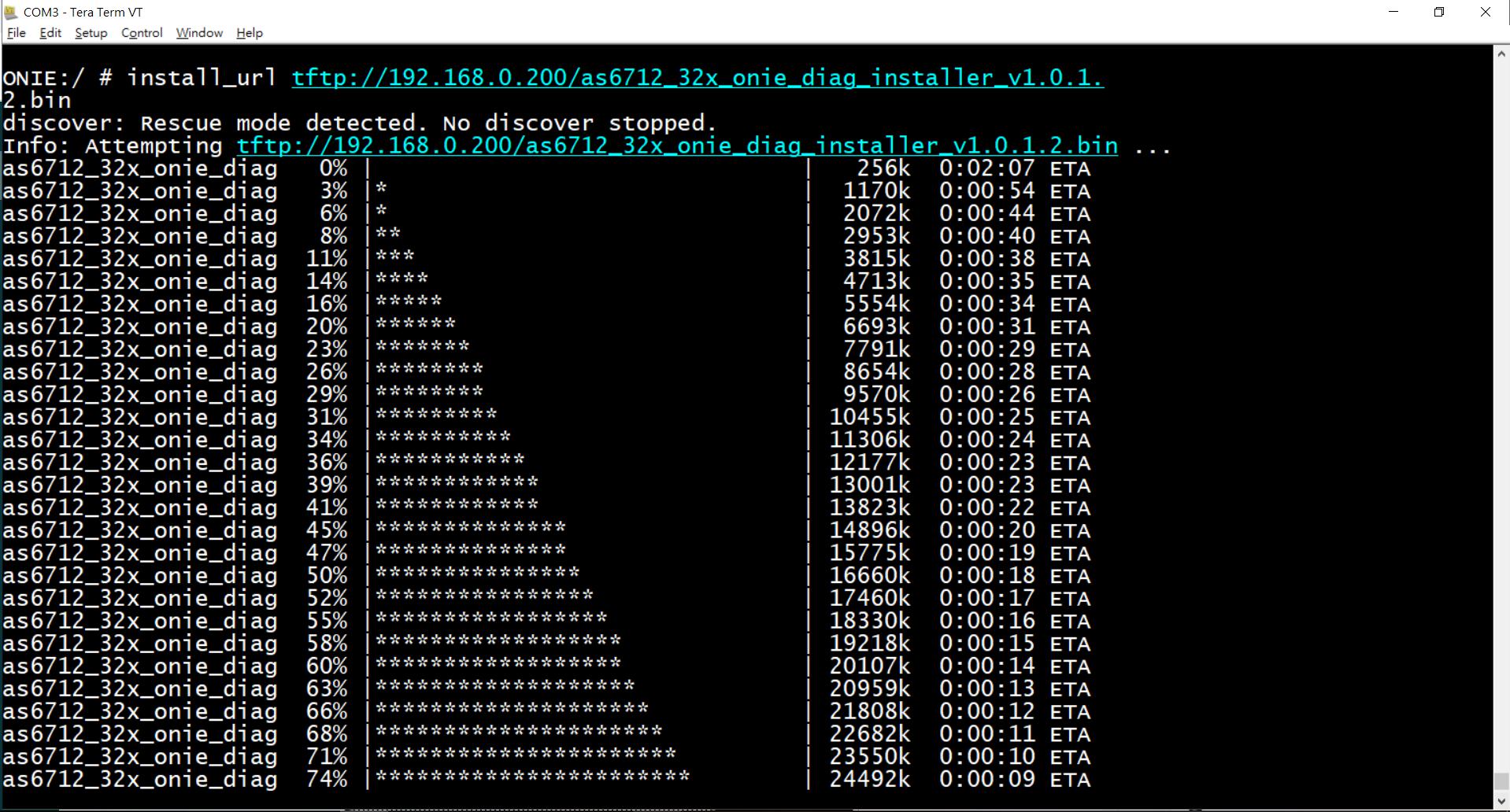

3. Input "onie-nos-install [TFTP location]" command and the installation will start.

       ONIE:/ # onie-nos-install tftp://192.168.0.200/as6712_32x_onie_diag_installer_v1.0.1.2.bin

4. The system will automatically reboot after installing and then you will see Accton diag on grub menu.

FTP

1. Please connect to the FTP server with Mgmt port. (e.g., AS6712-32x)

Note: Please use 1G port.

2. Set the IP address in ONIE and try to ping the FTP server. (Server IP: 192.168.0.200)

       ONIE:/ # ifconfig eth0 192.168.0.1 netmask 255.255.255.0

       ONIE:/ # ifconfig
       eth0 Link encap:Ethernet HWaddr CC:37:AB:C4:B1:0C
       inet addr:192.168.0.1 Bcast:192.168.0.255 Mask:255.255.255.0
       inet6 addr: fe80::ce37:abff:fec4:b10c/64 Scope:Link
       UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
       RX packets:77 errors:0 dropped:0 overruns:0 frame:0
       TX packets:31 errors:0 dropped:0 overruns:0 carrier:0
       collisions:0 txqueuelen:1000
       RX bytes:7619 (7.4 KiB) TX bytes:7134 (6.9 KiB)
       Memory:dff00000-dff1ffff

       ONIE:/ # ping 192.168.0.200
       PING 192.168.0.200 (192.168.0.200): 56 data bytes
       64 bytes from 192.168.0.200: seq=0 ttl=128 time=9.675 ms
       64 bytes from 192.168.0.200: seq=1 ttl=128 time=0.517 ms
       ^C
       --- 192.168.0.200 ping statistics ---
       2 packets transmitted, 2 packets received, 0% packet loss
       round-trip min/avg/max = 0.517/5.096/9.675 ms

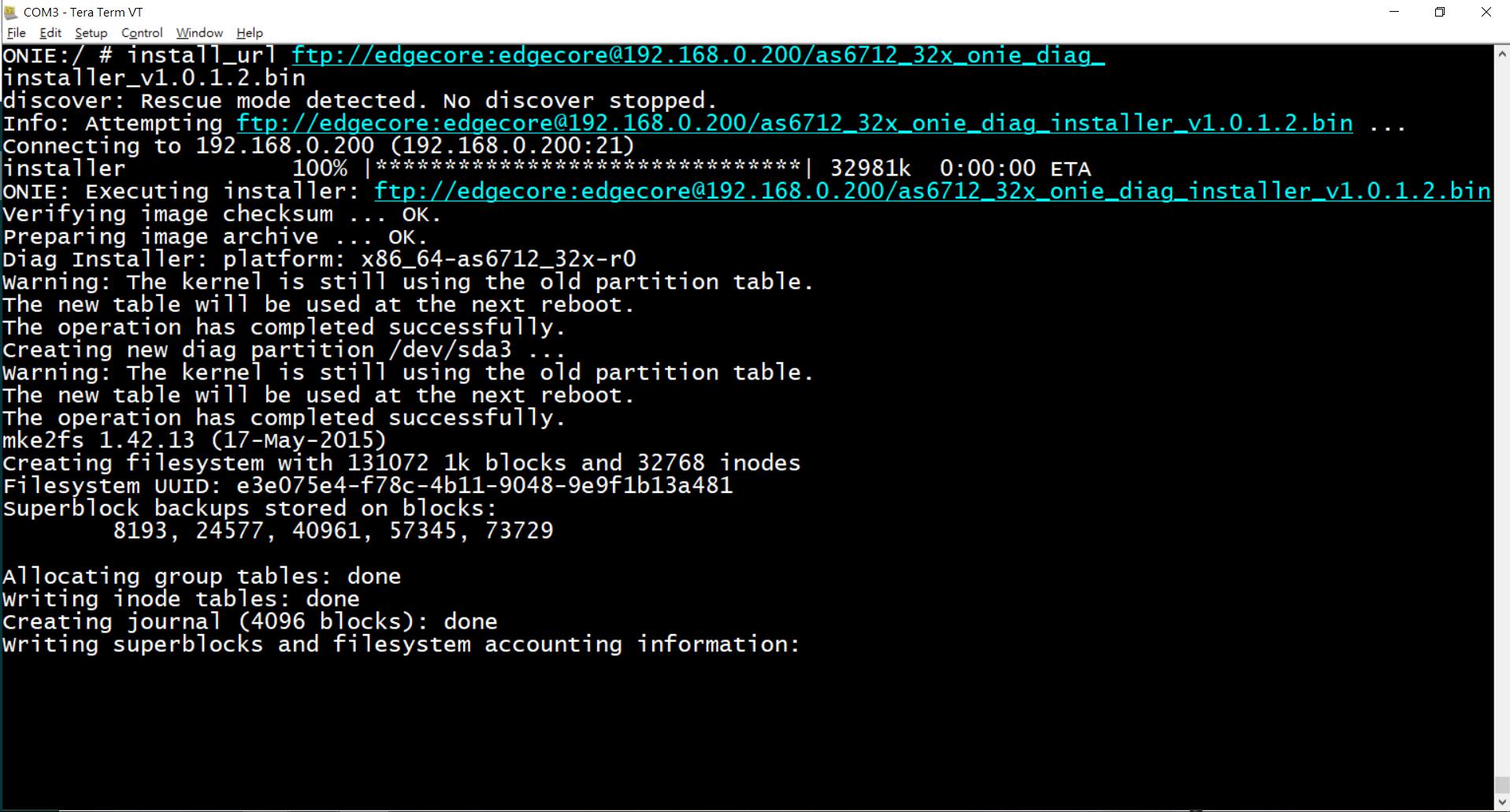

3. Input "onie-nos-install [FTP account:password@location]" command and the installation will start.

     ONIE:/ # onie-nos-install ftp://edgecore:edgecore@192.168.0.200/as6712_32x_onie_diag_
     installer_v1.0.1.2.bin

4. The system will automatically reboot after installing and then you will see Accton diag in the menu

HTTP

1. Please connect to the HTTP server with Mgmt port. (e.g., AS6712-32x)

Note: Please use 1G port.


2. Set the IP address in ONIE and try to ping the HTTP server. (Server IP: 192.168.0.200)

       ONIE:/ # ifconfig eth0 192.168.0.1 netmask 255.255.255.0

       ONIE:/ # ifconfig
       eth0 Link encap:Ethernet HWaddr CC:37:AB:C4:B1:0C
       inet addr:192.168.0.1 Bcast:192.168.0.255 Mask:255.255.255.0
       inet6 addr: fe80::ce37:abff:fec4:b10c/64 Scope:Link
       UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
       RX packets:77 errors:0 dropped:0 overruns:0 frame:0
       TX packets:31 errors:0 dropped:0 overruns:0 carrier:0
       collisions:0 txqueuelen:1000
       RX bytes:7619 (7.4 KiB) TX bytes:7134 (6.9 KiB)
       Memory:dff00000-dff1ffff

       ONIE:/ # ping 192.168.0.200
       PING 192.168.0.200 (192.168.0.200): 56 data bytes
       64 bytes from 192.168.0.200: seq=0 ttl=128 time=9.675 ms
       64 bytes from 192.168.0.200: seq=1 ttl=128 time=0.517 ms
       ^C
       --- 192.168.0.200 ping statistics ---
       2 packets transmitted, 2 packets received, 0% packet loss
       round-trip min/avg/max = 0.517/5.096/9.675 ms

3. Input "onie-nos-install [HTTP URL]" command and the installation will start.

     ONIE:/ # onie-nos-install http://192.168.0.200/as6712_32x_onie_diag_installer_v1.0.1.2.bin

4. The system will automatically reboot after installing and then you will see Accton diag on grub menu.

SCP

1. Please connect to the OpenSSH server with Mgmt port. (e.g., AS6712-32x)

Note: Please use 1G port.

2. Set IP address in ONIE and try to ping the OpenSSH server. (Server IP: 192.168.0.100)

       ONIE:/ # ifconfig eth0 192.168.0.1 netmask 255.255.255.0

       ONIE:/ # ifconfig
       eth0 Link encap:Ethernet HWaddr CC:37:AB:C4:B1:0C
       inet addr:192.168.0.1 Bcast:192.168.0.255 Mask:255.255.255.0
       inet6 addr: fe80::ce37:abff:fec4:b10c/64 Scope:Link
       UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
       RX packets:77 errors:0 dropped:0 overruns:0 frame:0
       TX packets:31 errors:0 dropped:0 overruns:0 carrier:0
       collisions:0 txqueuelen:1000
       RX bytes:7619 (7.4 KiB) TX bytes:7134 (6.9 KiB)
       Memory:dff00000-dff1ffff

       ONIE:/ # ping 192.168.0.100
       PING 192.168.0.100 (192.168.0.100): 56 data bytes
       64 bytes from 192.168.0.100: seq=0 ttl=64 time=0.705 ms
       64 bytes from 192.168.0.100: seq=1 ttl=64 time=0.433 ms
       ^C
       --- 192.168.0.100 ping statistics ---
       2 packets transmitted, 2 packets received, 0% packet loss
       round-trip min/avg/max = 0.433/0.569/0.705 ms

3. Use the "SCP" command to copy the diag installer from the SSH server.

scp [account@server ip]:[installer_file_path] [local_path]

       ONIE:/ # scp jeff_cheng@192.168.0.100:/Users/jeff_cheng/Desktop/ISO/6712-32x/DIA
       G/as6712_32x_onie_diag_installer_v1.0.1.2.bin /tmp

       Host '192.168.0.100' is not in the trusted hosts file.
       (ecdsa-sha2-nistp256 fingerprint md5 be:26:8f:8c:2f:26:69:f5:05:7e:30:d2:d2:01:e0:92)
       Do you want to continue connecting? (y/n) y
       jeff_cheng@192.168.0.100's password:
       as6712_32x_onie_diag_installer_v1.0.1.2.bin 100% 32MB 16.1MB/s 00:02

4. Install the Diag by "onie-nos-install [installer]" command.

       ONIE:/ # cd /tmp
       ONIE:/tmp # ls
       as6712_32x_onie_diag_installer_v1.0.1.2.bin
       ONIE:/tmp # onie-nos-install as6712_32x_onie_diag_installer_v1.0.1.2.bin

5. The system will automatically reboot after installing and then you will see Accton-Diag on grub menu.
