[Wedge100BF-series] Install and start up Accton Diag, Barefoot Shell and SDE Follow

matt_tsai 蔡明佑

August 23, 2024 11:13
Updated

Purpose:

Install and start up Accton Diag, use Diag in order to do some specific self-tests.

Model:

Wedge100BF-32X/65X/32QS

Agenda:

Section 1. Install Accton Diagnostic

Section 2. Install Diag Utility and start up.

Section 3. Start up Diag which had already installed before.

Section Ex. Startup Barefoot Shell & SDE

Download Link:

Wedge100BF-series Diag v0.0.1.5

Wedge100BF-series Diag Utility v0.36

Procedure:

Section 1. Install Accton Diagnostic

Step 1. Check the "Accton Diagnostic" had already installed or not.

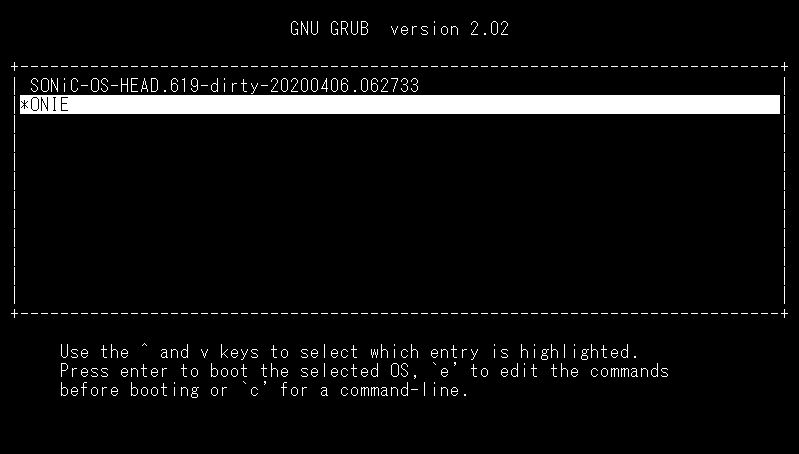

Choose "ONIE" to enter ONIE GRUB menu, but if there's no NOS had been installed, switch will show ONIE GRUB menu directly.

Note: If the "Accton Diagnostic" had been installed, please skip to Section 2.

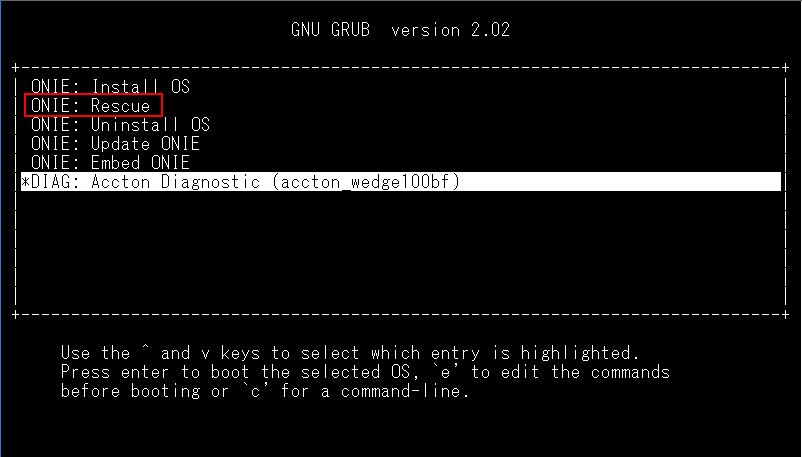

If choose "DIAG: Accton Diagnostic" but get error message, or the DIAG item don't even exist, please choose "ONIE: Rescue" to enter ONIE Rescue mode.

Then try "parted /dev/sda print" command to check whether the space enough 34.4G for DIAG.

If the memory is full of NOS, please "reboot" and choose "ONIE: Uninstall OS" in ONIE GRUB.

For Example:

** Rescue Mode Enabled **
ONIE:/ # parted /dev/sda print
Model: ATA FS128GM280I-AC (scsi)
Disk /dev/sda: 128GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:

Number  Start    End     Size    File system  Name             Flags
1       1049kB   269MB   268MB   fat16        EFI System       boot, hidden
2       269MB    404MB   134MB   ext4         ONIE-BOOT        hidden
3       404MB    1477MB  1074MB  ext4         NOVIWARE-BOOT
4       1477MB   128GB   127GB                NOVIWARE-ROOT    lvm

ONIE:/ #

Step 2. Install the Accton Diagnostic through TFTP/HTTP

** Rescue Mode Enabled **
ONIE:/ # ifconfig eth0 188.188.97.26
ONIE:/ # onie-nos-install tftp://188.188.99.1/Wedge100BF_Diag_v0_0_1_5.installer

Note: The green part must be modified to fit user's test environment.

After the installation done, choose "DIAG: Accton Diagnostic (accton_wedge100bf)"

root@bfn-switch:~#

Section 2. Install Diag Utility and start up

Note: If the Diag Utility had been install please skip to Section 3.

Step 1. Configure the IP address

root@bfn-switch:~# ifconfig enp2s0 188.188.97.26

Step 2. Transport the Diag Utility file by SCP

root@bfn-switch:~# scp matttsai@188.188.16.86:/home/matttsai/DIAG-V0.36.tgz /

Note: The green part must be modified to fit user's test environment.

Step 3. Extract Accton Diag package

root@bfn-switch:~# cd /
root@bfn-switch:/# tar zxvf DIAG-V0.36.tgz

Step 4. Into Accton Diag folder

root@bfn-switch:/# cd DIAG-V0.36/
root@bfn-switch:/DIAG-V0.36#

Step 5. Environment setup

root@bfn-switch:/DIAG-V0.36# sudo su
root@bfn-switch:/DIAG-V0.36# source sysenv

Step 6. Install Barefoor Networks Diag

root@bfn-switch:/DIAG-V0.36# sh ./bf-diag-install.sh

root@bfn-switch:/DIAG-V0.36# source sysenv2

Step 7. Compile and Install Diag Utility

root@bfn-switch:/DIAG-V0.36# cd diag_main

root@bfn-switch:/DIAG-V0.36/diag_main# make
root@bfn-switch:/DIAG-V0.36/diag_main# make install
root@bfn-switch:/DIAG-V0.36/diag_main# make clean

root@bfn-switch:/DIAG-V0.36/diag_main# cd ..
root@bfn-switch:/DIAG-V0.36#

Step 8. Modify ACC_MODEL_SKU parameter of sysenv file for hardware design

For Wedge100BF-32X/32QS :

root@bfn-switch:/DIAG-V0.36# export ACC_MODEL_SKU=MODEL_1U

For Wedge100BF-65X :

root@bfn-switch:/DIAG-V0.36# export ACC_MODEL_SKU=MODEL_2U

Step 9. Load Barefoot Diag driver and Intel ixgbe driver

root@bfn-switch:/DIAG-V0.36# source ./bf_diag_start.sh
[ 2794.889506] bf probe ok

Step 10. Start up Accton Diag

root@bfn-switch:/DIAG-V0.36# diag_main.py

Note: This takes about 3 minute at first time.

After check the "Please enter your choice (0 to quit):", press "Enter" will list all the Diag test item.

Initiating Accton Diag Environment is PASSED(0)!
Please enter your choice (0 to quit): tcp 0 0 :::8080 :::* LISTEN

*********************************************************
 1 Check EEPROM of cpu management port
 2 Read MAC address from cpu management port
 4 The probe test cp2112 for usb-to-i2c bus
 5 The R/W test for RTC timer
 6 The R/W and keepalive test for Watchdog timer
 7 The ICMP ECHO test for CPU management interface
 8 Monitor CPUs temperature
 9 Show TPM Information
 11 The R/W test for memory device(RAM)
 52 The R/W test for storage disk
 53 The R/W test for external storage disk
 54 Show COM-E HW information
 55 Scan Tofino information
 60 Make BMC backup image with LPC interface
 61 Update BMC flash with LPC interface
 70 The R/W test of devices for BMC management
 71 The information check for BMC management
 72 The Fan speed test
 75 Get HW information from FRU EEPROM
 76 Set HW information into FRU EEPROM
 77 The sensor test for BMC management
 78 Get HW information from Upper EEPROM
 79 Set HW information into Upper EEPROM
 80 Set file HW information into FRU EEPROM
 81 Show the sensor information for CPU FPGA
 82 Test system LED(OFF->RED->GREEN->BLUE->RECOVER)
 83 Set post LED(0x00 - 0xFF)
 85 Set file HW information into Upper EEPROM
 86 Set FAN LED(OFF->RED->BLUE->RECOVER)
 88 Console Selection Button test(SW2)
 89 Reset Button test(SW1)
 90 Show Board Revision ID
 92 The ICMP ECHO test for BMC MAC2 interface
 94 The ICMP ECHO test for BMC USB0 interface
 96 (TBD)The SEL test for BMC
 97 The RTC test for BMC
 98 The watchdog test for BMC
 99 Send RST signal to CP2112
101 Send Modbus RTU packet to RS-485 port
103 COM-E Power Button test
104 Show QSFP EEPROM
106 Verify EEPROM contents of 16 ports GE switch
110 Show IR3584 thernal
113 Get HW information from 21" PSU EEPROM
114 Set HW information into 21" PSU EEPROM
115 Show Revision of SYSTEM CPLD and Fan RackMon CPLD
117 Front Panel Push Button test
119 Check and Upgrade COM_E external BIOS
150 Load Barefoot Diagnostic Service
151 Show efuse information
152 Make traffic test for Barefoot 10GBASE-KR Interface
153 One port Traffic external stress test
154 One port Traffic internal stress test
155 Test front port LED(OFF->RED->GREEN->BLUE)
179 Unload Barefoot Diagnostic Service
180 Check retimer chipset status
199 Show PSU status
204 Reboot BMC
205 Update BMC firmware from TFTP server(Sideband)
208 Cold start the system
300 Set the uS card number of switch board into parameter
302 Set the count of Cold-Start system into parameter
303 Set the count of burnin counter into parameter
998 The unitest for diag test cases(BURN-IN mode)
999 The unitest for diag test cases(MFG mode)
*********************************************************
Please enter your choice (0 to quit):

Caution: If you see the message as below, please choose item 179 Unload Barefoot Diagnostic Service.

*********************************************************
Please enter your choice (0 to quit): 199
Barefoot diagnostic service state:
 0x10: Disable
 0x20: Enable
 0x40: Already execute and Disable
The current state (0x20) of Barefoot diagnostic service is not matched the mask (0x50) for diag item 199
Please enter your choice (0 to quit):

Section 3. Start up Diag Utility which had already installed before

Step 1. Into Accton Diag folder

root@bfn-switch:~# cd /DIAG-V0.36/
root@bfn-switch:/DIAG-V0.36#

Step 2. Environment setup

root@bfn-switch:/DIAG-V0.36# sudo su
root@bfn-switch:/DIAG-V0.36# source sysenv
root@bfn-switch:/DIAG-V0.36# source sysenv2

Step 3. Modify ACC_MODEL_SKU parameter of sysenv file for hardware design

For Wedge100BF-32X/32QS :

root@bfn-switch:/DIAG-V0.36# export ACC_MODEL_SKU=MODEL_1U

For Wedge100BF-65X :

root@bfn-switch:/DIAG-V0.36# export ACC_MODEL_SKU=MODEL_2U

Step 4. Load Barefoot Diag driver and Intel ixgbe driver

root@bfn-switch:/DIAG-V0.36# source ./bf_diag_start.sh
[ 2794.889506] bf probe ok

Step 5. Start up Accton Diag

root@bfn-switch:/DIAG-V0.36# diag_main.py

Note: This takes about 3 minute at first time.

After check the "Please enter your choice (0 to quit):", press "Enter" will list all the Diag test item.

Please refer to Section 2. Step 10.

Section Ex. Startup Barefoot Shell & SDE

Same procedure start from Section 3. to Section 3. Step 4., after execute "source ./bf_diag_start.sh".

Start up the Barefoot Shell.

root@bfn-switch:/DIAG-V0.36# swutil -C -S --install-path=$BF_DIAG_INSTALL_DIR
(...omitted)

********************************************
 * WARNING: Authorised Access Only *
 ********************************************

bfshell> root@bfn-switch:/DIAG-V0.36#

Note: It takes about 3 minute and stays at "bfshell>".

root@bfn-switch:/DIAG-V0.36# bfshell

        ********************************************
        * WARNING: Authorised Access Only *
        ********************************************

bfshell>

Startup Barefoot SDE

bfshell> ucli

Starting UCLI from bf-shell

Cannot read termcap database;
using dumb terminal settings.
bf-sde>

Stop Barefoot shell

root@bfn-switch:/DIAG-V0.36# swutil -C -s
[argc] 2, [optind] 2, argv[2]=(null), optarg=(null)
Shutdown switch driver...
PID of bf_switchd is 1479
root@bfn-switch:/DIAG-V0.36#
