[Enhancement] Support ERPS with Multiple Instance Follow

Zoe Lin

August 23, 2024 13:04
Updated

Support models and software version:

ECS4120 Series V1.2.2.18 and above.

ECS4100 Series V1.2.36.191 and above.

Overview

ERPS provides a solution that allows physical loops but creates loop-free logical topologies.

Loop avoidance for a ring topology is achieved by guaranteeing that, at any time, traffic may flow on all but one of the ring links. This particular link is called the ring protection link (RPL), and under normal conditions this link is blocked, i.e. not used for user traffic. One end of the RPL link is designated as RPL owner which is responsible to block user traffic over the RPL. Once a link failure is detected, the RPL owner shall react to unblock the RPL and quickly recover from network outages.

As mentioned above, a physical link of a ring will be blocked to avoid loops. Redundant links cannot be utilized. Multiple instances feature is proposed to address this problem. The set of VLANs of Ethernet ring could be grouped into several subsets called ERP instances. Because users can define a different RPL per instance, all physical links can be utilized.

The difference between Old and New version of ERPS.

1. Number of instance per ring

I. Old version: one instance per ring.

II. New version: more than one instance per ring.

2. ERPS domain vs. ERPS ring and instance

I. Old version: all you have to do is configuring an ERPS domain which is equivalent to an ERPS ring and

an ERPS instance.

II. New version: ERPS domain configuration is further decomposed into ERPS ring and ERPS instance

configurations.

- Users have to configure ERPS rings and ERPS instances separately and bind one or more ERPS

instances to any one of ERPS ring.

3. Exclusion-VLAN and inclusion-VLAN

I. Inclusion VLANs are protected by an ERPS domain.

II. Exclusion VLANs are not protected by an ERPS domain.

- Traffic of exclusion VLANs will not be blocked on the ring ports.

- VLANs not configured in the inclusion list and exclusion list will be always blocked on the ring ports.

- Traffic of VLANs (including control VLAN, inclusion VLANs, and exclusion VLANs) used in an ERPS

domain will always be unblocked on all non-ERPS ring ports.

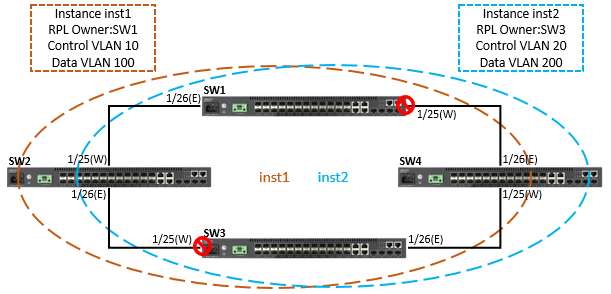

Topology

Configuration

SW1

SW1#configure
SW1(config)#interface ethernet 1/1
SW1(config-if)#switchport allowed vlan add 100,200,300 tagged
SW1(config-if)#exit
SW1(config)#interface ethernet 1/25
SW1(config-if)#switchport allowed vlan add 10,20,100,200,300 tagged
SW1(config-if)#spanning-tree spanning-disabled
SW1(config-if)#exit
SW1(config)#interface ethernet 1/26
SW1(config-if)#switchport allowed vlan add 10,20,100,200,300 tagged
SW1(config-if)#spanning-tree spanning-disabled
SW1(config-if)#exit
SW1(config)#erps
SW1(config)#erps vlan-group group1 add 10,100
SW1(config)#erps vlan-group group2 add 20,200
SW1(config)#erps ring Ring
SW1(config-erps-ring)#ring-port west interface ethernet 1/25
SW1(config-erps-ring)#ring-port east interface ethernet 1/26
SW1(config-erps-ring)#enable
SW1(config-erps-ring)#exit
SW1(config)#erps instance inst1 id 1
SW1(config-erps-inst)#control-vlan 10
SW1(config-erps-inst)#rpl owner
SW1(config-erps-inst)#physical-ring Ring
SW1(config-erps-inst)#inclusion-vlan group1
SW1(config-erps-inst)#enable
SW1(config-erps-inst)#exit
SW1(config)#erps instance inst2 id 2
SW1(config-erps-inst)#control-vlan 20
SW1(config-erps-inst)#physical-ring Ring
SW1(config-erps-inst)#inclusion-vlan group2
SW1(config-erps-inst)#enable
SW1(config-erps-inst)#end

SW2 & SW4

SW2#configure
SW2(config)#interface ethernet 1/1
SW2(config-if)#switchport allowed vlan add 100,200,300 tagged
SW2(config-if)#exit
SW2(config)#interface ethernet 1/25
SW2(config-if)#switchport allowed vlan add 10,20,100,200,300 tagged
SW2(config-if)#spanning-tree spanning-disabled
SW2(config-if)#exit
SW2(config)#interface ethernet 1/26
SW2(config-if)#switchport allowed vlan add 10,20,100,200,300 tagged
SW2(config-if)#spanning-tree spanning-disabled
SW2(config-if)#exit
SW2(config)#erps
SW2(config)#erps vlan-group group1 add 10,100
SW2(config)#erps vlan-group group2 add 20,200
SW2(config)#erps ring Ring
SW2(config-erps-ring)#ring-port west interface ethernet 1/25
SW2(config-erps-ring)#ring-port east interface ethernet 1/26
SW2(config-erps-ring)#enable
SW2(config-erps-ring)#exit
SW2(config)#erps instance inst1 id 1
SW2(config-erps-inst)#control-vlan 10
SW2(config-erps-inst)#physical-ring Ring
SW2(config-erps-inst)#inclusion-vlan group1
SW2(config-erps-inst)#enable
SW2(config-erps-inst)#exit
SW2(config)#erps instance inst2 id 2
SW2(config-erps-inst)#control-vlan 20
SW2(config-erps-inst)#physical-ring Ring
SW2(config-erps-inst)#inclusion-vlan group2
SW2(config-erps-inst)#enable
SW2(config-erps-inst)#end

SW3

SW3#configure
SW3(config)#interface ethernet 1/1
SW3(config-if)#switchport allowed vlan add 100,200,300 tagged
SW3(config-if)#exit
SW3(config)#interface ethernet 1/25
SW3(config-if)#switchport allowed vlan add 10,20,100,200,300 tagged
SW3(config-if)#spanning-tree spanning-disabled
SW3(config-if)#exit
SW3(config)#interface ethernet 1/26
SW3(config-if)#switchport allowed vlan add 10,20,100,200,300 tagged
SW3(config-if)#spanning-tree spanning-disabled
SW3(config-if)#exit
SW3(config)#erps
SW3(config)#erps vlan-group group1 add 10,100
SW3(config)#erps vlan-group group2 add 20,200
SW3(config)#erps ring Ring
SW3(config-erps-ring)#ring-port west interface ethernet 1/25
SW3(config-erps-ring)#ring-port east interface ethernet 1/26
SW3(config-erps-ring)#enable
SW3(config-erps-ring)#exit
SW3(config)#erps instance inst1 id 1
SW3(config-erps-inst)#control-vlan 10
SW3(config-erps-inst)#physical-ring Ring
SW3(config-erps-inst)#inclusion-vlan group1
SW3(config-erps-inst)#enable
SW3(config-erps-inst)#exit
SW3(config)#erps instance inst2 id 2
SW3(config-erps-inst)#control-vlan 20
SW3(config-erps-inst)#rpl owner
SW3(config-erps-inst)#physical-ring Ring
SW3(config-erps-inst)#inclusion-vlan group2
SW3(config-erps-inst)#enable
SW3(config-erps-inst)#end

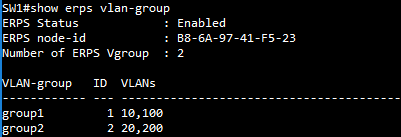

SW1 VLAN group configuration

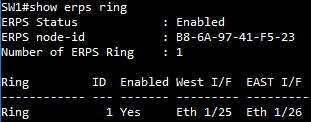

SW1 ERPS ring configuration

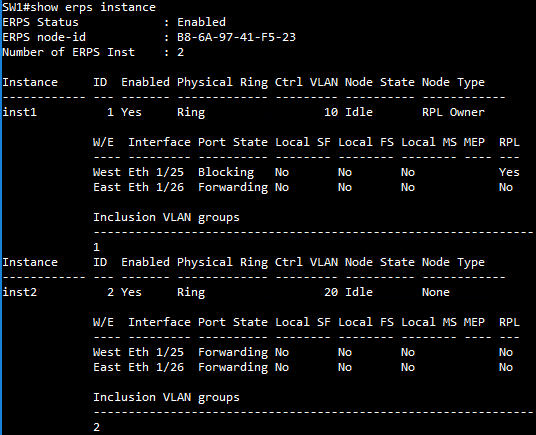

SW1 ERPS instance configuration

SW2 VLAN group configuration

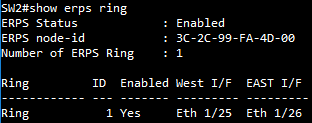

SW2 ERPS ring configuration

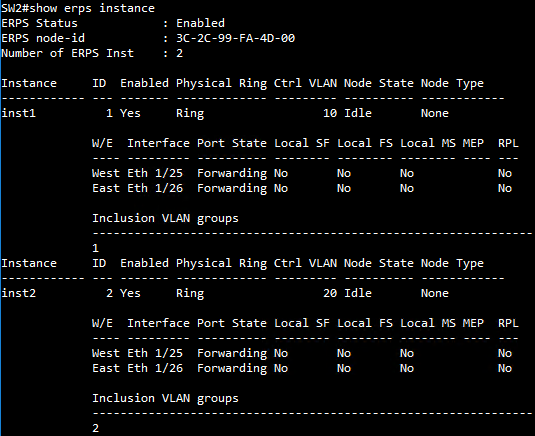

SW2 ERPS instance configuration

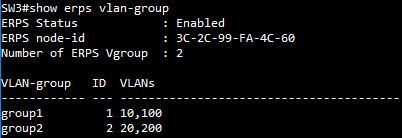

SW3 VLAN group configuration

SW3 ERPS ring configuration

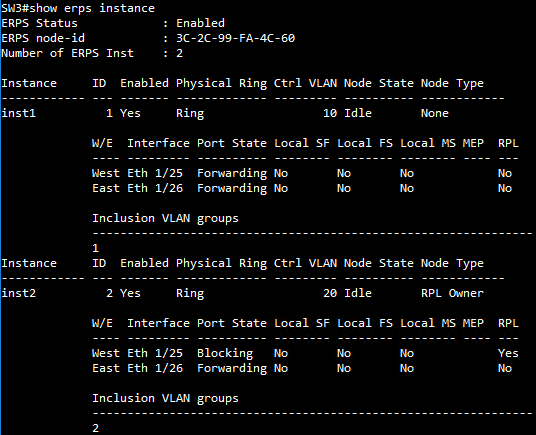

SW3 ERPS instance configuration

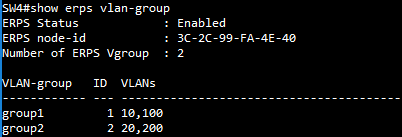

SW4 VLAN group configuration

SW4 ERPS ring configuration

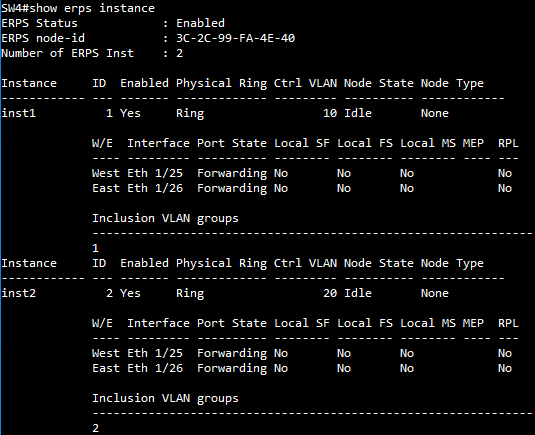

SW4 ERPS instance configuration

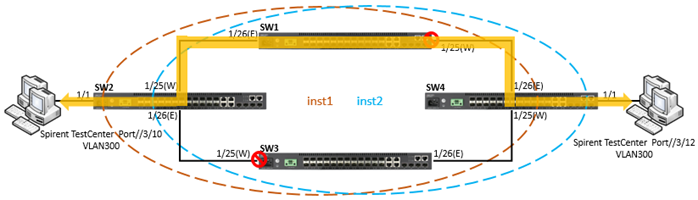

Exclusion VLAN

Add two hosts for traffic VLAN 300.

If we didn't configure VLAN300 for exclusion vlan, then the traffic will be blocked by ERPS.

To prevent VLAN300 on ports of the logical line from being blocked by ERPS, the user can configure physical rings to form the line topology.

SW1

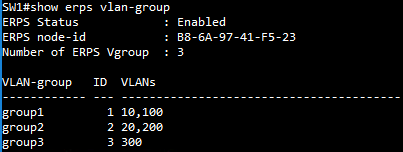

SW1(config)#erps vlan-group group3 add 300
SW1(config)#erps ring Ring
SW1(config-erps-ring)#no enable

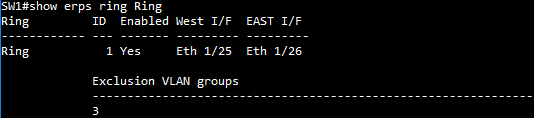

SW1(config-erps-ring)#exclusion-vlan group3
SW1(config-erps-ring)#enable

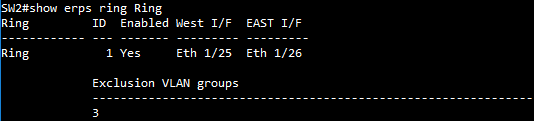

SW2

SW2(config)#erps vlan-group group3 add 300
SW2(config)#erps ring Ring
SW2(config-erps-ring)#no enable
SW2(config-erps-ring)#exclusion-vlan group3
SW2(config-erps-ring)#enable

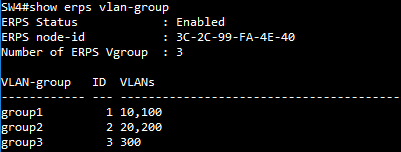

SW4

SW4(config)#erps vlan-group group3 add 300
SW4(config)#erps ring Ring
SW4(config-erps-ring)#no enable
SW4(config-erps-ring)#exclusion-vlan group3
SW4(config-erps-ring)#enable
