Test result of Cable Diagnostics among Edgecore switches (ES3528M, ECS3510-28T, ECS4100-52T)

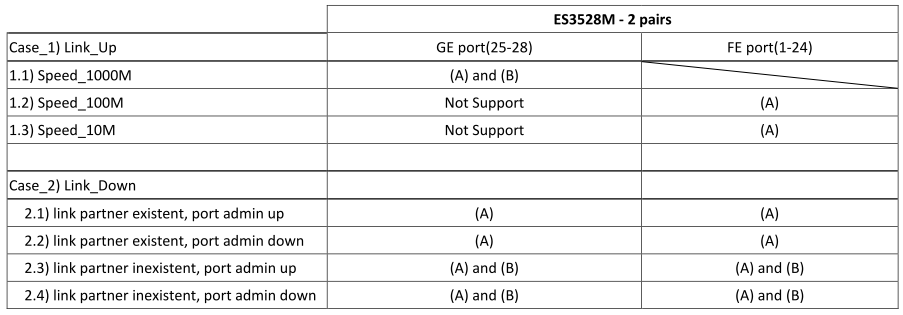

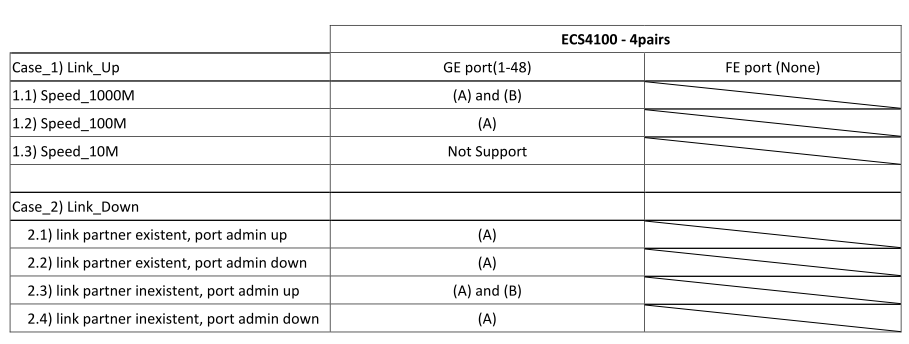

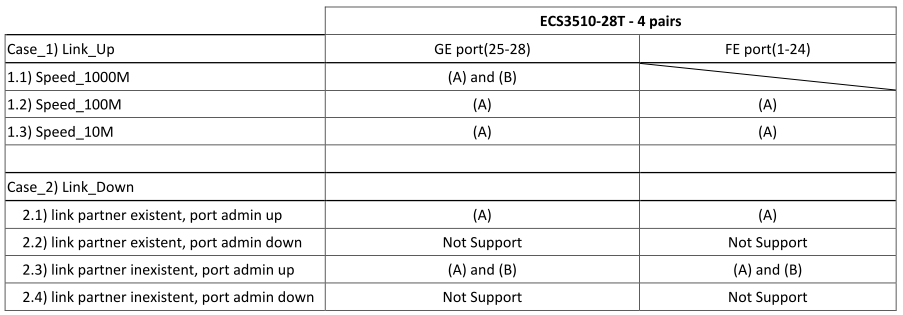

Cable Diagnostic supports either (A) cable failures, as well as the status and approximate distance to a fault or (B) the approximate cable length if no fault is found.



-------port admin up-------------
Console(config)#interface ethernet 1/1
Console(config-if)#no shutdown
-------port admin down-----------
Console(config)#interface ethernet 1/1
Console(config-if)#shutdown
Console#show in status ethernet 1/1
Link Down Reason : Port Admin
