How to configure 802.1x PAE supplicant ? Follow

Support models:
ES3510MA, ES3528MV2, ECS3510-28T/52T, ECS4110 series, ECS4510 series, ECS4620 series

Scenario:

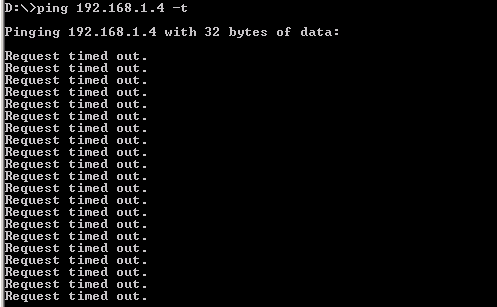

Step 8) Try to ping the radius server from Client1
Client 1 : Ping failed because the port was not authenticated by RADIUS server.


Step 9) Check the version on ECS4110-28P which support dot1x supplicant mode
ECS4110-28P(DUT):
Dut1#show version
Unit 1
  Serial Number : EC1427000158
  Hardware Version : R0A
  EPLD Version : 0.00
  Number of Ports : 28
  Main Power Status : Up
  Role : Master
  Loader Version : 1.2.0.1
  Linux Kernel Version : 2.6.22.18
  Boot ROM Version : 0.0.0.1
  Operation Code Version : 1.2.3.13

Step 10) Enable dot1x supplicant mode on port interface
ECS4110-28P(DUT):
   Dut1#configure
   Dut1(config)#interface ethernet 1/23
   Dut1(config-if)#dot1x pae supplicant

Step 11) Set up the dot1x supplicant Username and Password
ECS4110-28P(DUT):
   Dut1#configure
   Dut1(config)#dot1x identity profile username test
   Dut1(config)#dot1x identity profile password support

Step 12) Reconnect the port 1/23 of ECS4110-28P to re-authenticate.
ECS4110-28P(DUT):
   Dut1#configure
   Dut1(config)#interface ethernet 1/23
   Dut1(config-if)#shutdown
   Dut1(config-if)#no shutdown

Step 13) Check the status of dot1x on ECS4120-28Fv2
ECS4120-28Fv2:
ECS412028Fv2#show dot1x interface ethernet 1/23
802.1X Authenticator is enabled on port 1/23
  Reauthentication : Disabled
  Reauth Period : 3600 seconds
  Quiet Period : 60 seconds
  TX Period : 30 seconds
  Supplicant Timeout : 30 seconds
  Server Timeout : 10 seconds
  Reauth Max Retries : 2
  Max Request : 2
  Operation Mode : Multi-Host
  Port Control : Auto
  Maximum MAC Count : 5
  Intrusion Action : Block traffic

Supplicant : 70-72-CF-C8-58-8F // ECS4110-28P(DUT)’s MAC Address

  Authenticator PAE State Machine
    State : Authenticated
    Reauth Count : 0
    Current Identifier : 1

ECS4110-28P(DUT):
Dut1#show dot1x
Global 802.1X Parameters:
  System Auth Control : Disabled
Authenticator Parameters:
  EAPOL Pass Through : Disabled
Supplicant Parameters:
  Identity Profile Username : test
802.1X Port Summary
Port     Type          Operation Mode Control Mode       Authorized
-------- ------------- -------------- ------------------ ----------
Eth 1/22 Disabled      Single-Host    Force-Authorized   N/A
Eth 1/23 Supplicant    Single-Host    Force-Authorized   Yes
Eth 1/24 Disabled      Single-Host    Force-Authorized   N/A
Eth 1/25 Disabled      Single-Host    Force-Authorized   N/A
802.1X Port Details
802.1X Authenticator is disabled on port 1/23
802.1X Supplicant is enabled on port 1/23
Authenticated : Yes
Auth-period : 30 seconds
Held-period : 60 seconds
Start-period : 30 seconds
Max-start : 3

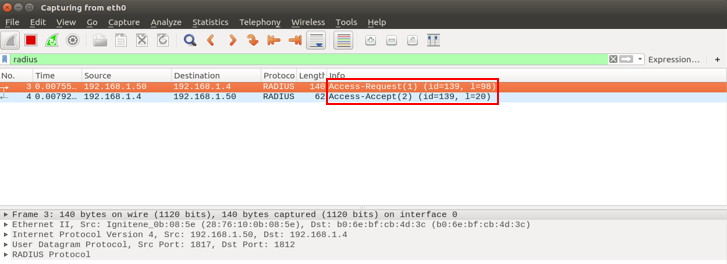

Step 14) Retrieve the packet by wireshark on RADIUS Server
Authentication Successfully


Step 15) Try to ping the radius server again from Client1

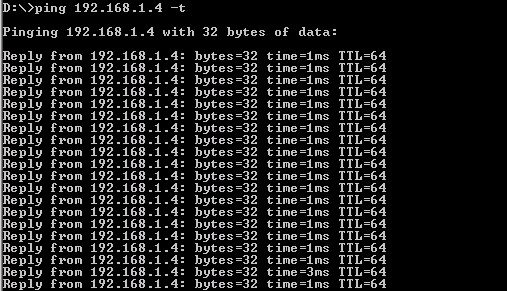

Client 1 : Ping Successfully

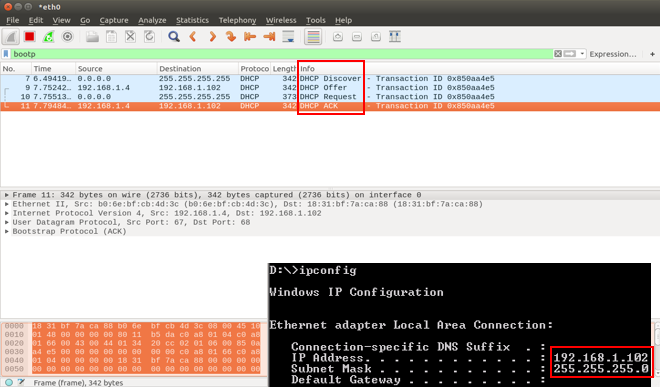

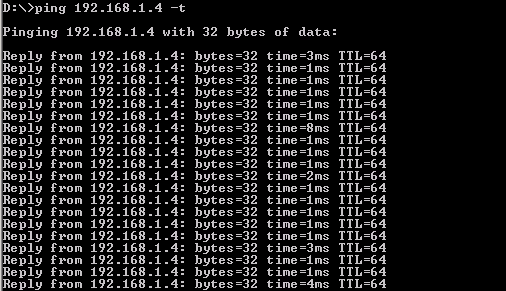

Client 2 : Successfully obtain the IP address by DHCP Server and ping to radius server
