ECIS4500 series support E-Ring – How to configure E-Ring (Coupling)? Follow

The network topology and configuration show as below.

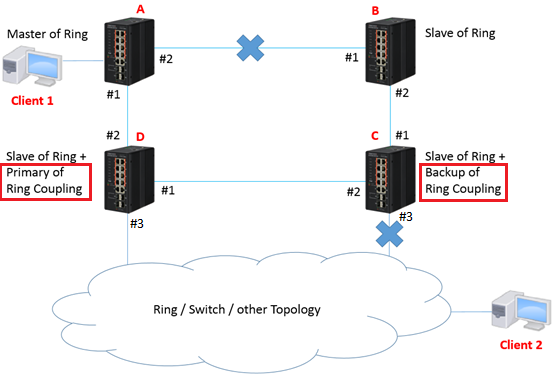

Coupling topology:


Caution:
Please do not connect the Ethernet cable before finishing configuration of Coupling.


Configuration:
1. Since ring protection is a media redundancy protocol (IEC 62439-2), please disable any other anti-loop protection.

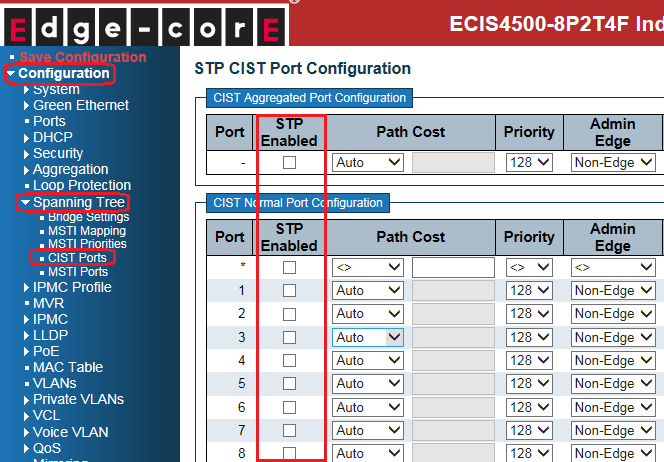

1-1 Disable Spanning-Tree on all ports: (It’s enabled by default)

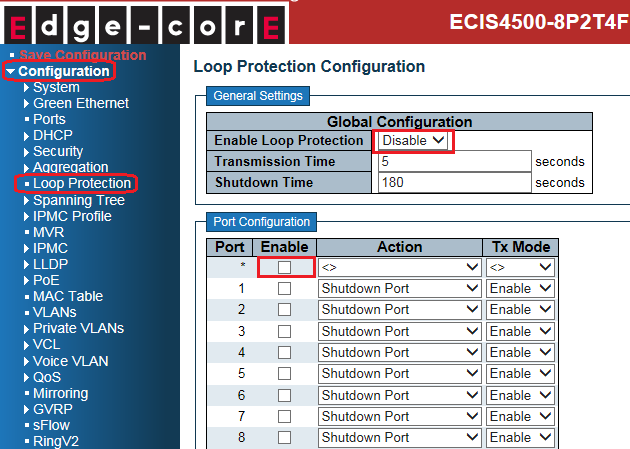

1-2 Disable Loop Protection on all ports: (It’s disabled by default)


2. Configure Coupling on all switches.

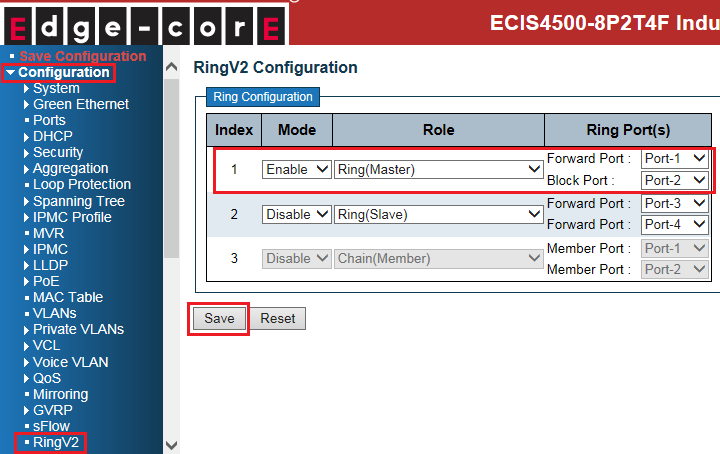

- Master of Ring (switch A):

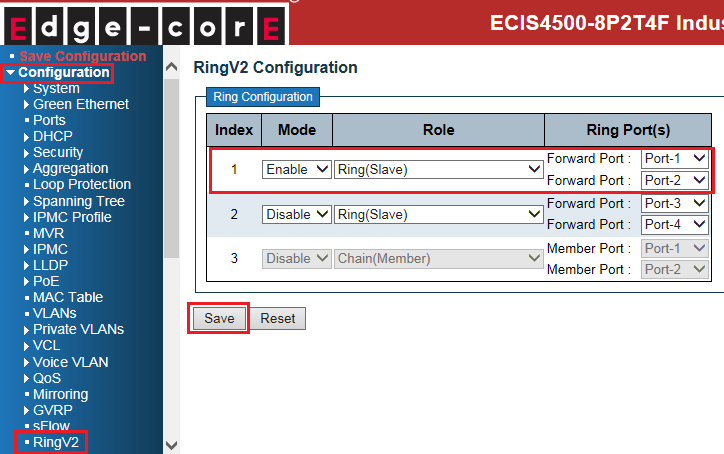

- Slave of Ring (switch B):

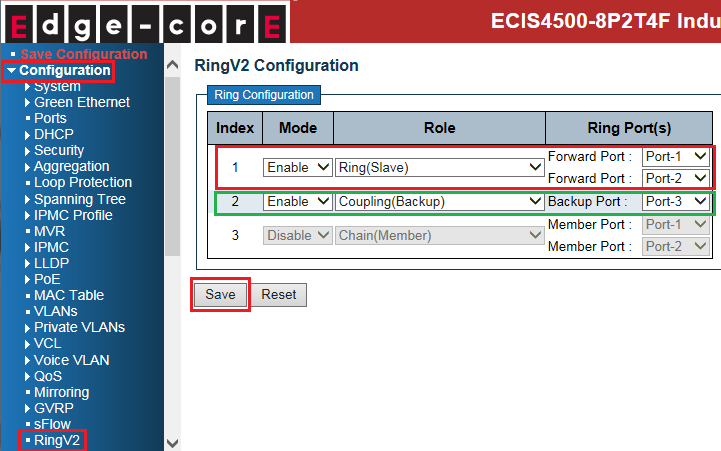

- Slave of Ring + Backup of Ring Coupling (switch C):

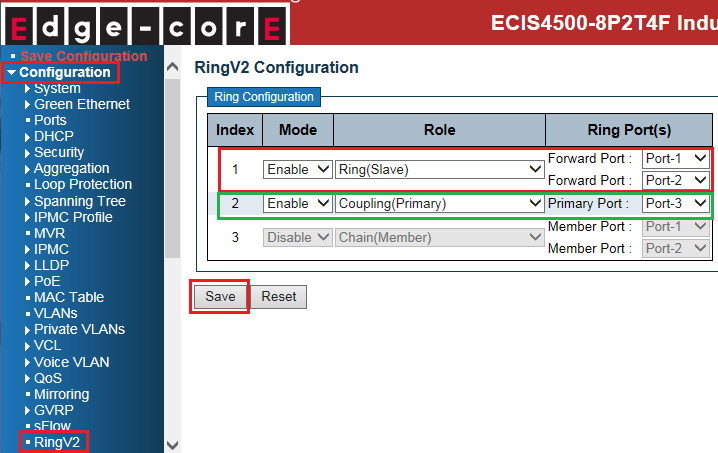

- Slave of Ring + Primary of Ring Coupling (switch D):

Caution:
There are 2 types of Coupling ring port:
-  Primary port: primary path of ring coupling.
-  Backup port: backup path of ring coupling


3. Connect Ethernet cables.
Caution: backup port of coupling switch always blocked by default.  ( no link failure)

4. Check the Coupling status:

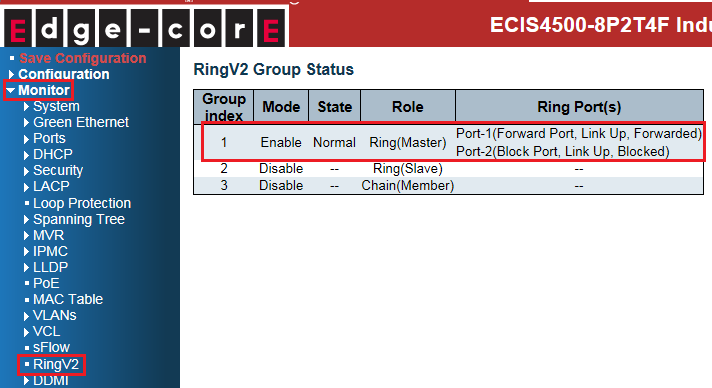

- Master of Ring (switch A):

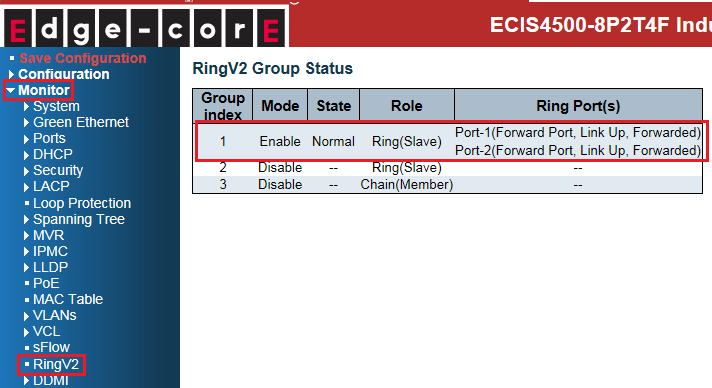

- Slave of Ring (switch B):



- Slave of Ring + Backup of Ring Coupling (switch C):

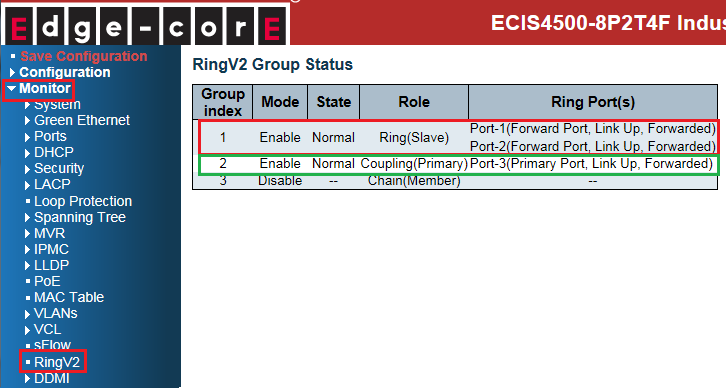

- Slave of Ring + Primary of Ring Coupling (switch D):

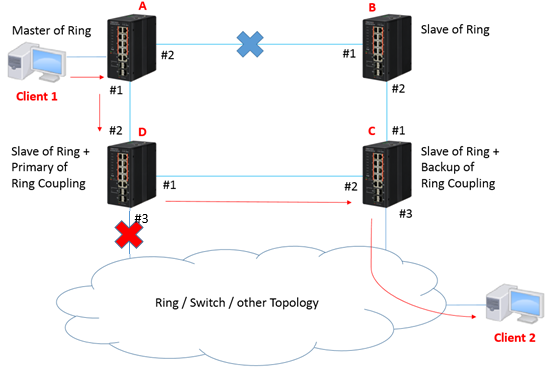

The status on each switch when link fails:


- Master of Ring (switch A): No impact on switch A.



- Slave of Ring (switch B): No impact on switch B.

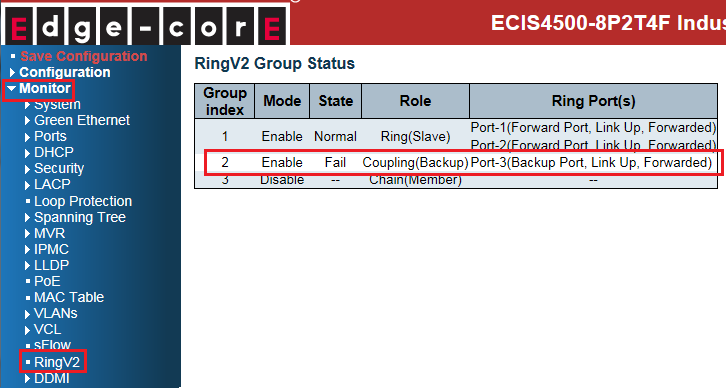

- Slave of Ring + Backup of Ring Coupling (switch C):
The state of port 3 is changed from blocking to forwarding.

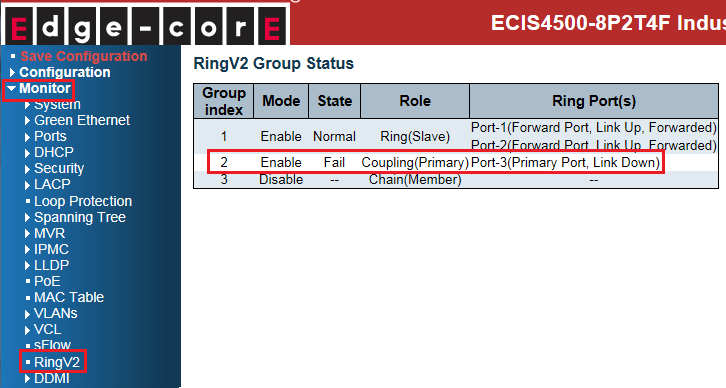

- Slave of Ring + Primary of Ring Coupling (switch D): Port 3 link down.
