How to configure MAC Based VLAN, IP Subnet Based VLAN, Protocol Based VLAN on ECIS4500 series? Follow

- 1. MAC Based VLAN
Assign VLAN to interface base on client’s MAC address.
Scenario:

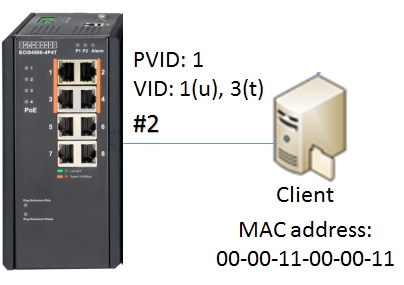

Client with MAC address 00-00-11-00-00-11, is assigned to VLAN 3.


Configuration steps:

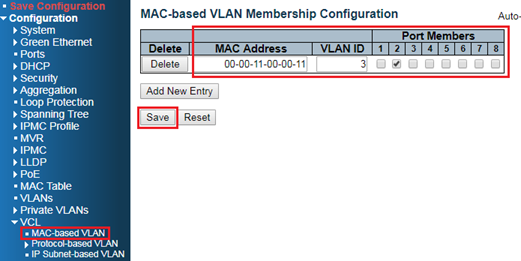

1. Specific the MAC address of client to the VLAN 3(on port 2).

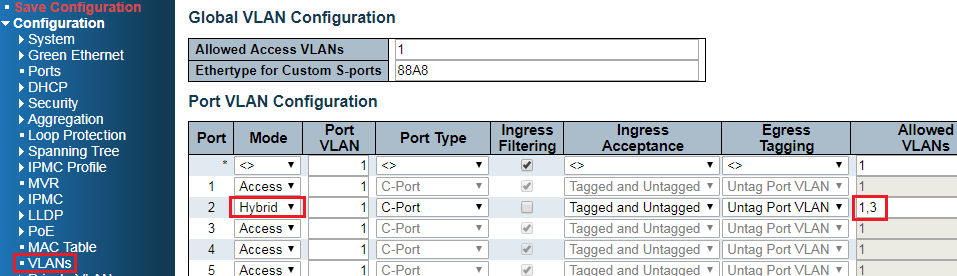

2. Allow VLAN 3 on port 2. (PVID:1 VID:1u,3t)


Result:

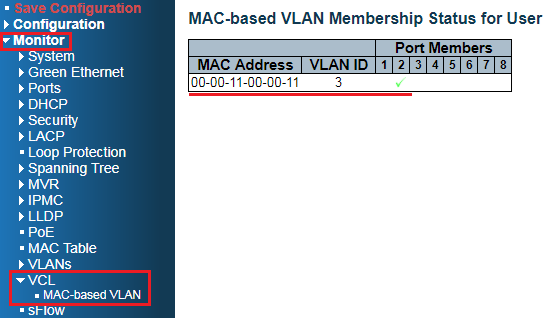

Check MAC-Based VLAN table.

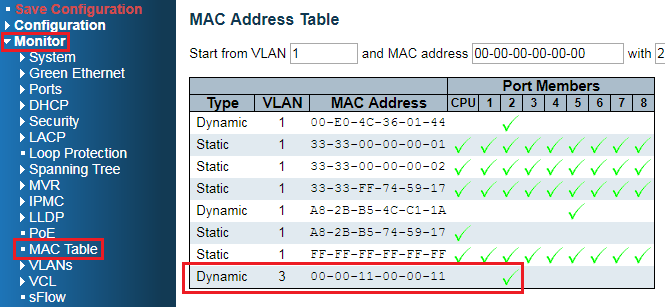

Also, this MAC address is learned on VLAN3 in the MAC table if the switch receives packets from client.



- 2. IP Subnet Based VLAN
   Assign VLAN to interface base on client’s IP address/IP subnet.
Scenario:

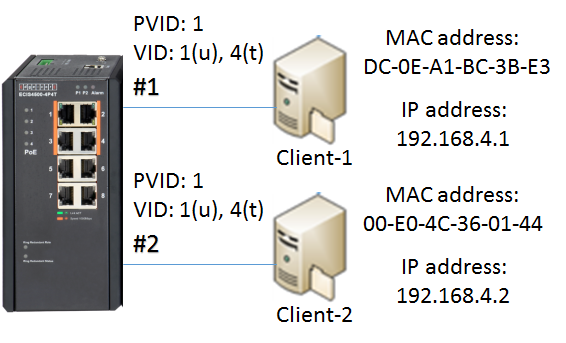

Clients belong to IP subnet 192.168.4.0/24, are assigned to VLAN 4.


Configuration Steps:

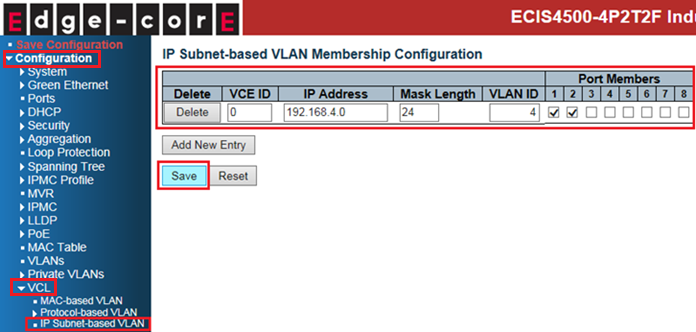

1. Assign IP subnet 192.168.4.0/24 to the VLAN 4(on port 1 and 2).

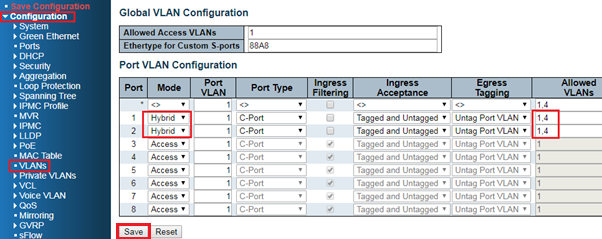

2. Allow VLAN 4 on port 1 and 2. (PVID:1 VID:1u,4t)


3. Add static ARP entry for client-1 and client-2 by manual on PC.
(since ARP packet without IP header does not belong to IP packet)
  For example, in Windows OS:
  arp –s “IP address” “MAC address”

  OR
  netsh interface ip add neighbors “name of NIC” “IP address” “MAC address”

Command: arp –a to check the ARP table.

Result:
Clients belong to IP subnet 192.168.4.0/24, are assigned to VLAN 4.
Also, these MAC addresses of clients are learnedt on VLAN4 in the MAC table.



- 3. Protocol Based VLAN
   Assign VLAN to interface base on its protocol.
Scenario:

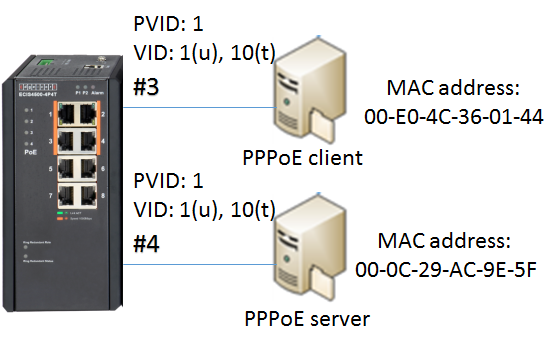

Protocol PPPoE (0x8863 and 0x8864) are assigned to VLAN 10.

Configuration Steps:
1. Protocol groups

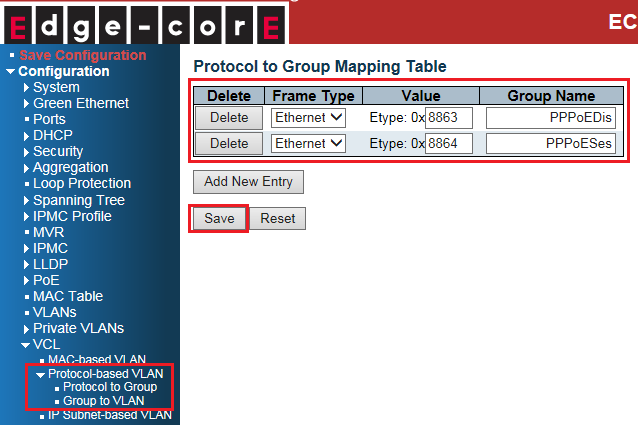

Create protocol groups PPPoE_Discovery(0x8863) and PPP_Session(0x8864).


2. Assign protocol groups to VLAN

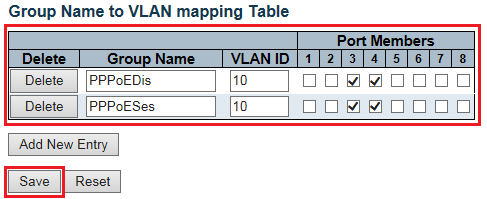

Mapping the groups to VLAN 10(on port 3 and 4).

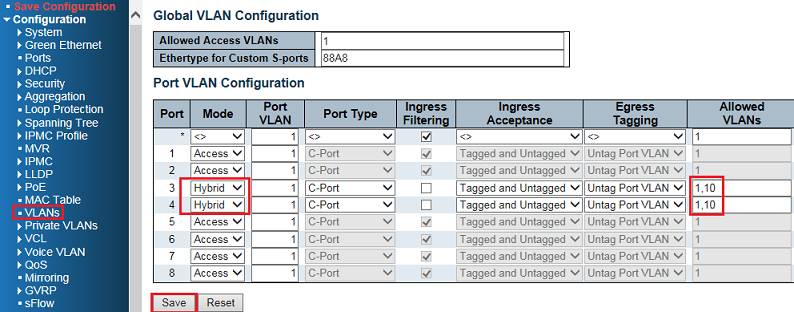

3. Allow VLAN 10 on port 3 and 4. (PVID:1 VID:1u,10t)


Result:

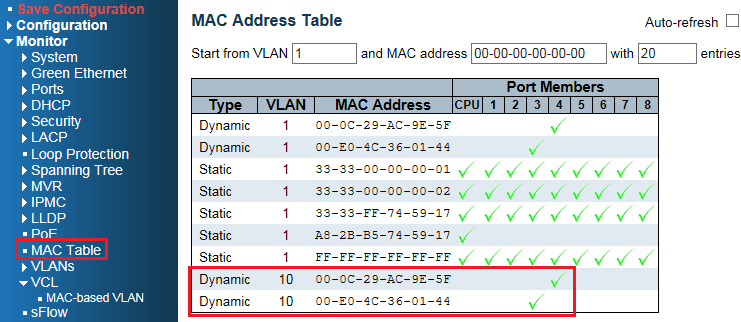

PPPoE client/server on port 3 and 4 are assigned to the VLAN 10.
